The APC UNO 24V 40W Standalone Solar Kit is a complete off-grid power solution designed for compatible 24V gate automation systems. It allows sliding or swing gate motors to operate in locations where mains power is unavailable or impractical, making it ideal for rural properties, long driveways, remote entrances and new installations where trenching power to the gate would be difficult or expensive.

The system uses a 40W solar panel to recharge two 17Ah batteries wired in series to provide a 24V supply, while the APC Sun Power 12V/24V 10A PWM regulator manages charging and power delivery to the gate automation system. The batteries and regulator are housed inside the large APC UNO enclosure, providing a neat and protected installation.

The UNO enclosure is designed specifically for outdoor gate automation applications, with dedicated cable-management points and a secure mounting system. Both the solar enclosure and solar panel are suitable for outdoor exposure, and the system can be mounted to suitable posts, walls or piers depending on the installation.

The 40W solar panel provides a practical balance between charging capacity and panel size, making the kit suitable for a wide variety of everyday gate installations. Correct solar-panel positioning is important, with the panel requiring good access to direct sunlight throughout the day to maintain battery charge. Shaded locations, high gate usage and continuously powered accessories can increase power demand and may require additional solar or battery capacity.

For best performance, the solar panel should be installed in a position with strong, unobstructed sunlight. High gate usage, shaded installations or power-hungry accessories may require an upgraded solar configuration to maintain reliable battery charging.

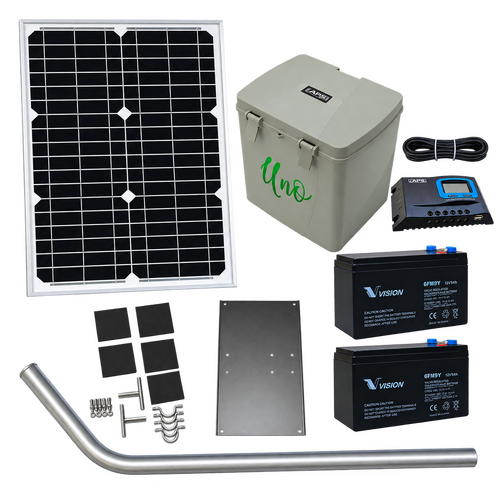

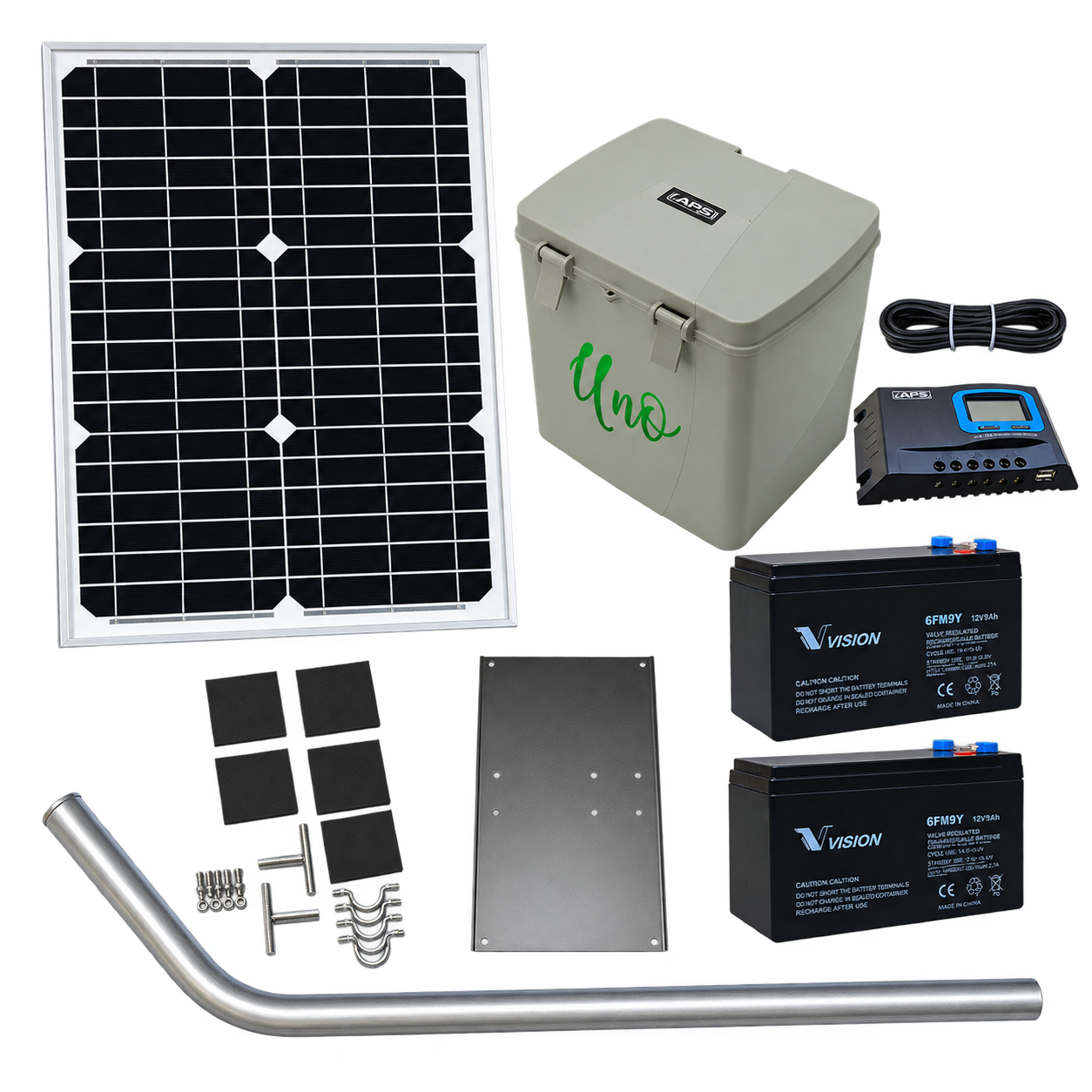

Inclusions in the Kit

• 1x 24V 40W Solar Panel
• 1x Solar Panel Post & Mounting Bracket

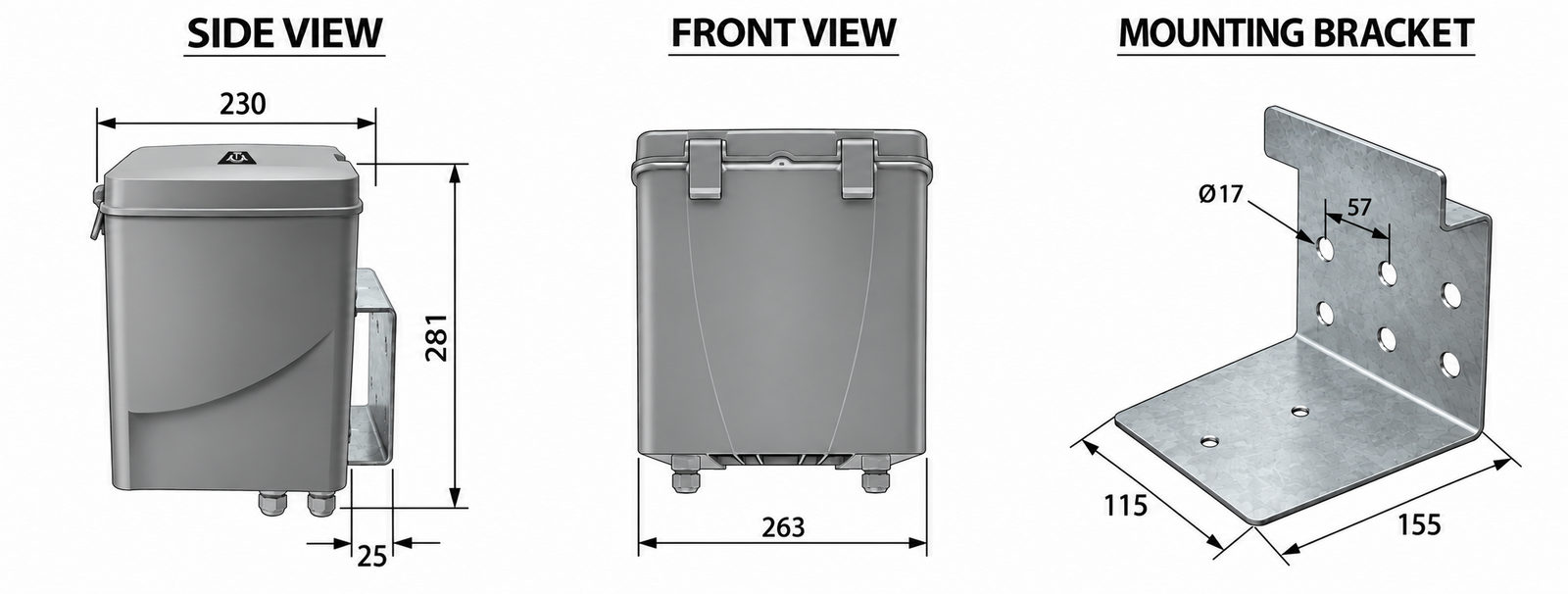

• 1x APC UNO Large Multipurpose Battery Box
• 1x APC Sun Power 12V/24V 10A PWM Solar Regulator
• 2x 17Ah High-Capacity Batteries
• 1x 2m 2-Core 2mm Cable

Key Features

• Complete standalone solar power system
• Designed for compatible 24V gate automation systems
• Suitable for sliding and swing gate motors
• 40W solar charging panel
• Dual 17Ah battery system
• 24V battery configuration
• 12V/24V 10A PWM solar regulator
• Large APC UNO weather-resistant enclosure
• No mains power connection required at the gate
• Ideal for remote and rural gate installations
• Clean cable-management system
• Suitable for mounting to posts, walls and piers
• Solar panel supplied with dedicated mounting hardware
• Can reduce the need for trenching and underground power cabling
• System can be expanded where additional solar capacity is required

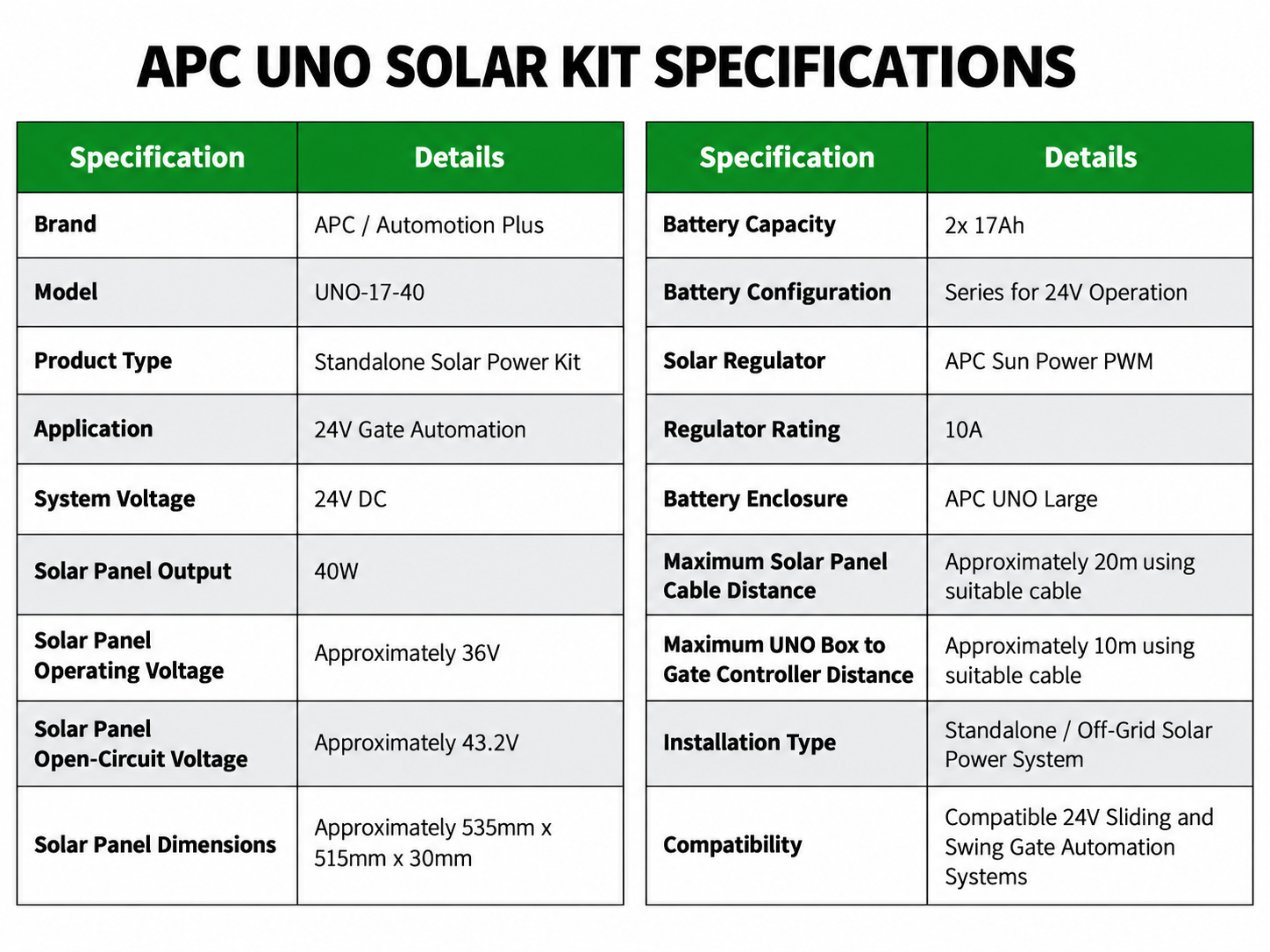

Specifications

• Brand: APC / Automotion Plus
• Model: UNO-17-40
• Product Type: Standalone Solar Power Kit
• Application: 24V Gate Automation
• System Voltage: 24V DC
• Solar Panel Output: 40W
• Solar Panel Operating Voltage: Approximately 36V
• Solar Panel Open-Circuit Voltage: Approximately 43.2V
• Solar Panel Dimensions: Approximately 535mm x 515mm x 30mm
• Battery Capacity: 2x 17Ah
• Battery Configuration: Series for 24V Operation
• Solar Regulator: APC Sun Power PWM
• Regulator Rating: 10A
• Battery Enclosure: APC UNO Large
• Maximum Solar Panel Cable Distance: Approximately 20m using suitable cable
• Maximum UNO Box to Gate Controller Distance: Approximately 10m using suitable cable
• Installation Type: Standalone / Off-Grid Solar Power System
• Compatibility: Compatible 24V Sliding and Swing Gate Automation Systems
