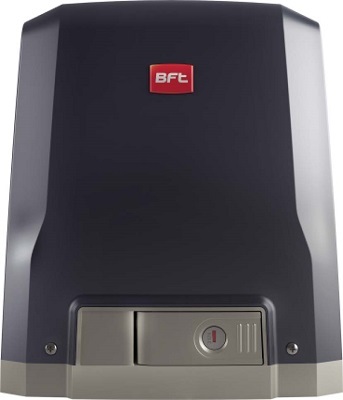

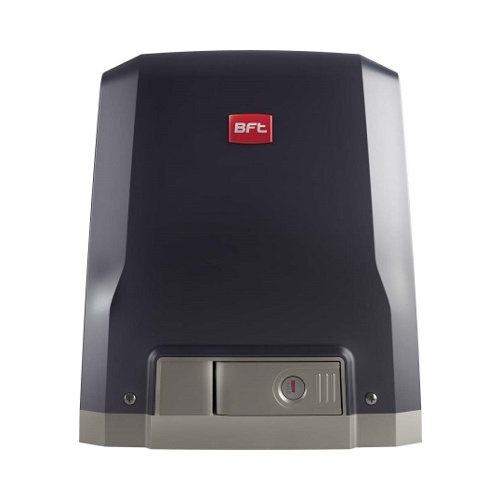

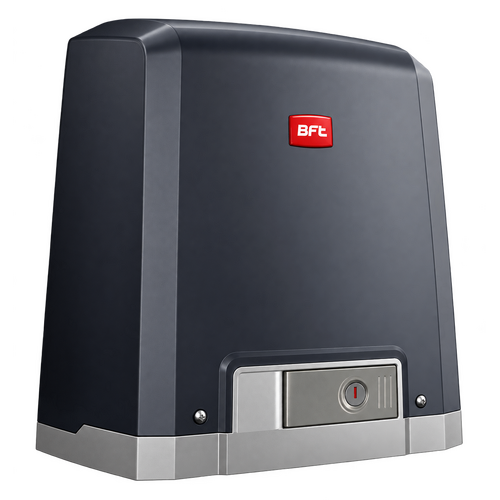

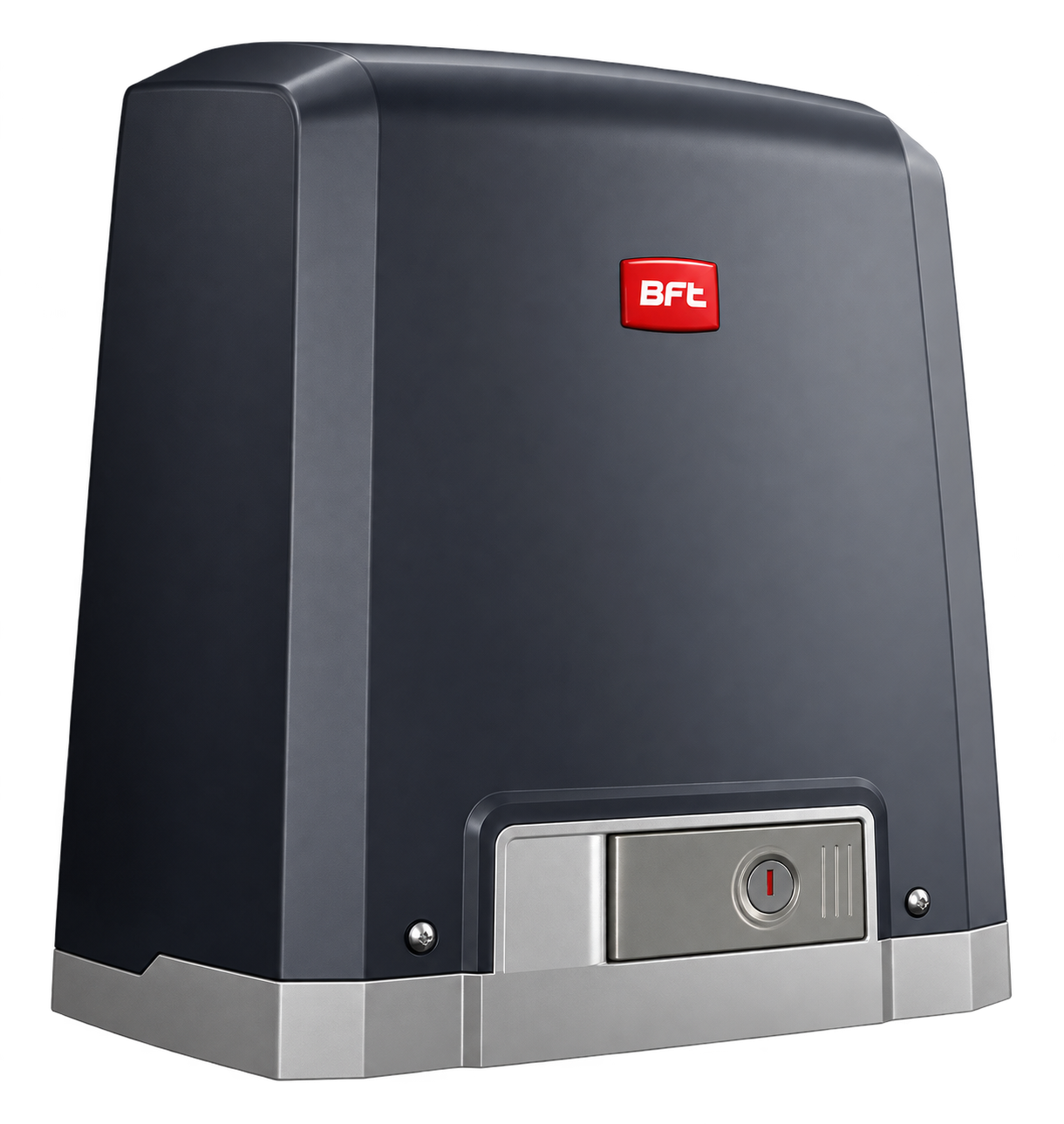

The BFT Deimos BT B400 is a reliable and compact sliding gate operator designed for residential and light-use sliding gates weighing up to 400kg. Powered by a 24V DC motor, it delivers smooth, controlled and dependable operation while offering a maximum gate speed of up to 16 metres per minute.

Designed for everyday driveway access, the Deimos BT B400 combines BFT's proven gate automation technology with simple programming, obstacle detection and adjustable slowdown functions. It is an excellent choice for customers looking for a dependable sliding gate motor for homes, townhouses, small complexes and other light-duty applications.

The Deimos BT B400 is designed to automate sliding gates with a maximum weight of 400kg. When selecting a gate motor, gate weight should not be considered on its own. The condition of the track and wheels, gate length, slope, wind loading, frequency of use and how freely the gate travels can all affect motor performance. The gate should always move smoothly and freely by hand before automation is installed.

Wind Loads & Weight

The 400kg rating is a maximum gate-weight specification and does not automatically mean every 400kg gate is suitable for this operator. Long gates, gates exposed to high wind loads, gates travelling uphill, poorly maintained gates or gates that require excessive force to move may require a larger operator. Always consider the complete gate system and site conditions when selecting the correct motor.

Understanding wind loads is essential when selecting and installing a gate system, particularly for large, solid or enclosed gates that can act like a sail in strong winds. Wind pressure can place significant additional force on the gate, hinges, posts and automation equipment, so factors such as gate size, design, location and exposure should always be considered to help ensure safe, reliable operation and prevent premature wear or damage.

Inclusions in the Kit

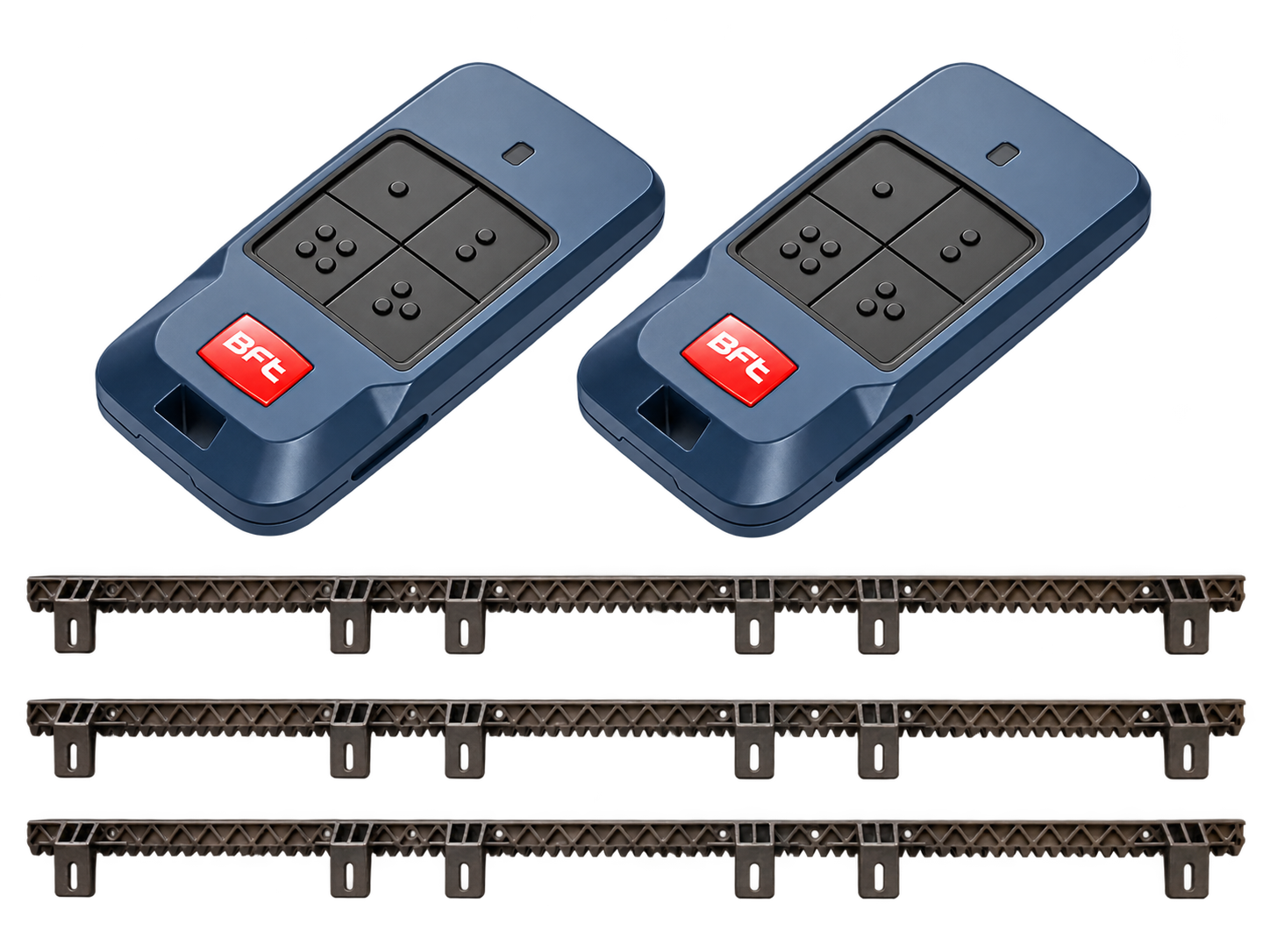

• 1x Deimos BT B400
• 2x MITTO COOL C4 4-Button Remotes
• 3x 1000mm Nylon Racks

Key Features

• Suitable for sliding gates up to 400kg
• Maximum gate speed of approximately 16m/min
• 24V DC motor
• 230–240V AC control board supply
• HAMAL BT A control board
• BFT D-Track dynamic force-control technology
• Electromechanical limit switches
• Opening and closing slowdown
• Mechanical locking
• Manual release for power outages
• Maximum thrust approximately 56kgf
• Up to approximately 25 operating cycles per hour
• Designed for residential sliding gate automation
• Compatible with suitable BFT remotes, photocells and accessories

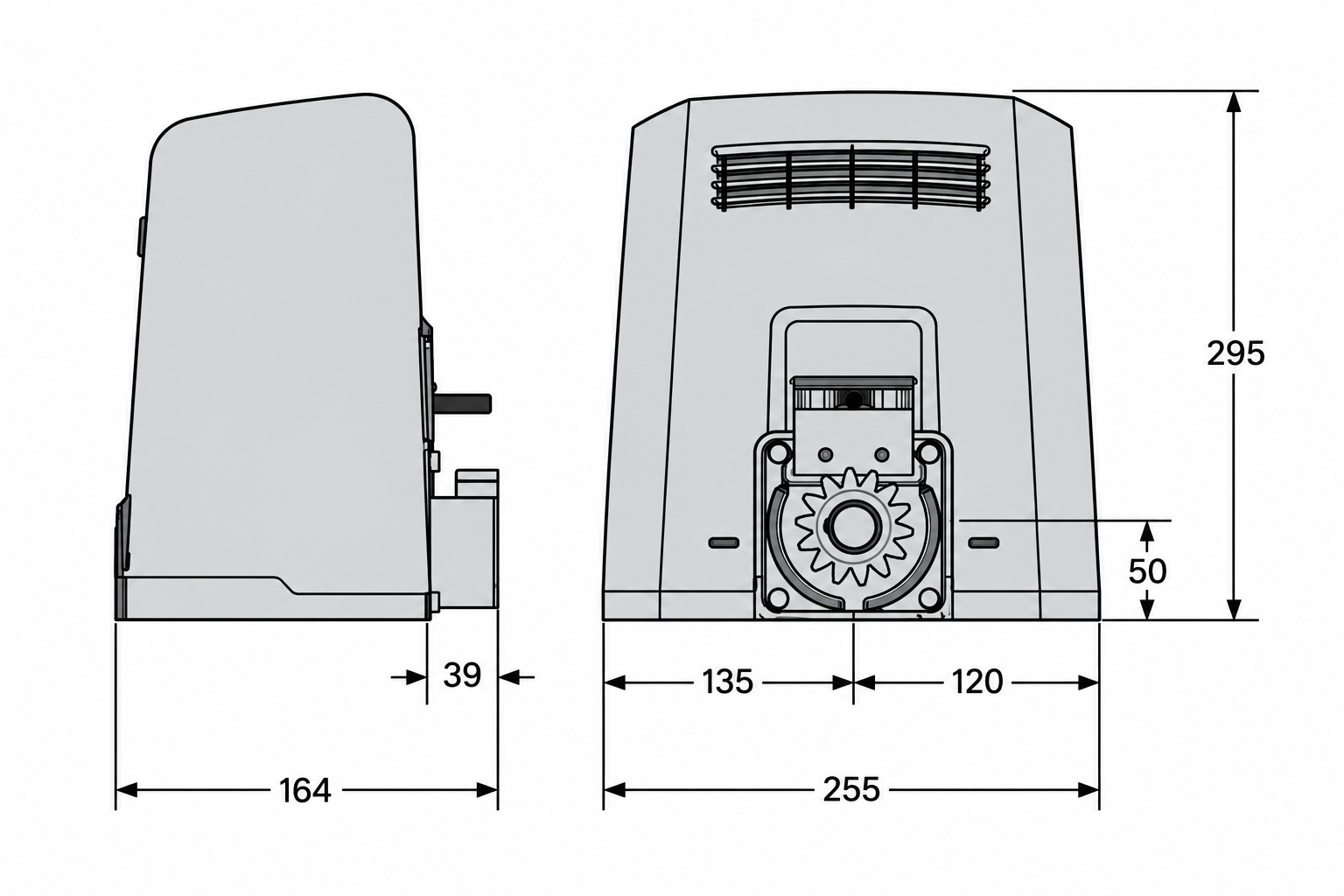

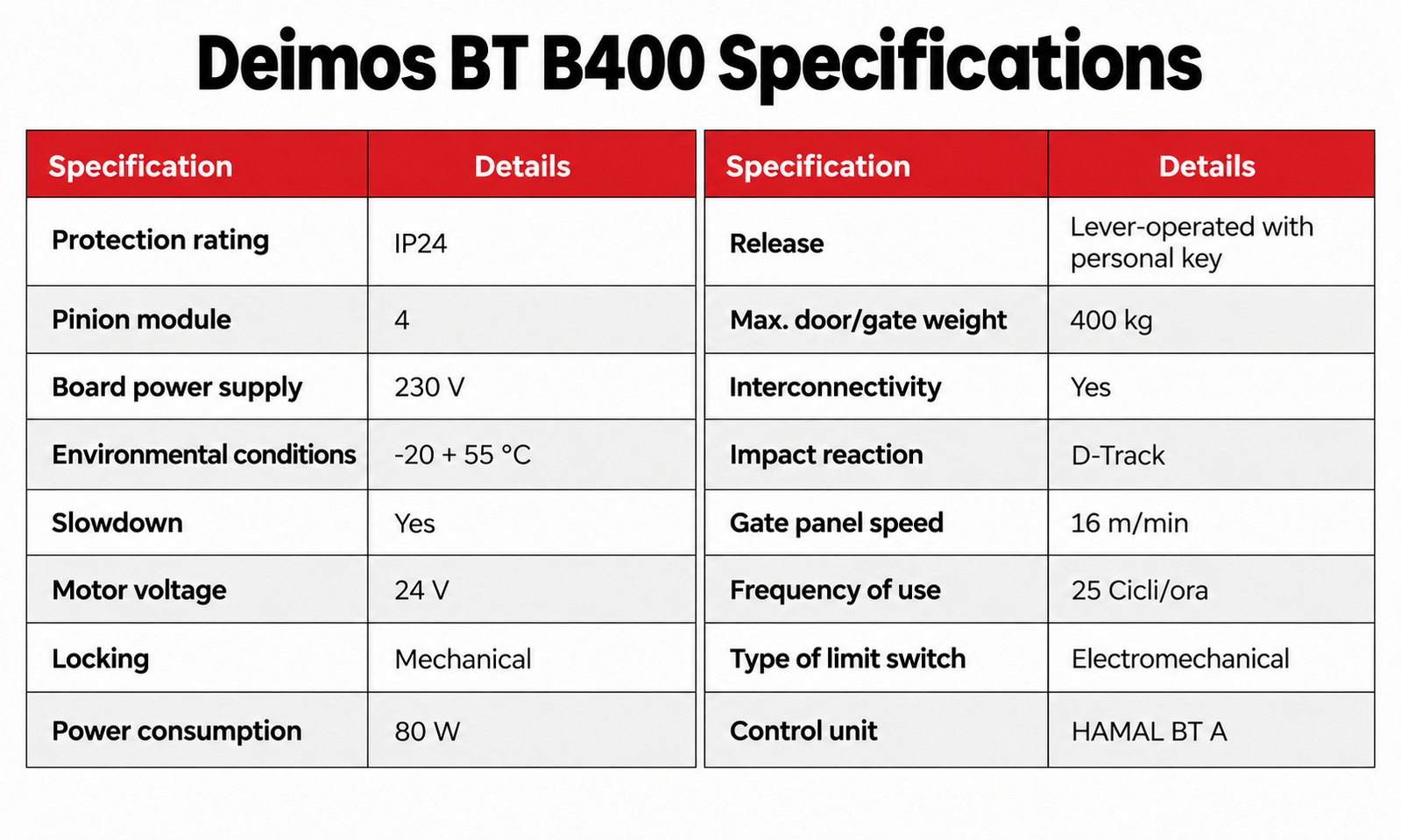

Specifications

• Brand: BFT
• Model: Deimos BT B400
• Operator Type: Sliding Gate Motor
• Maximum Gate Weight: 400kg
• Motor Voltage: 24V DC
• Control Board Supply: 230–240V AC
• Control Board: HAMAL BT A
• Maximum Gate Speed: 16m/min
• Maximum Thrust: Approximately 56kgf
• Power Consumption: Approximately 80W
• Limit Switch Type: Electromechanical
• Impact / Force Control: BFT D-Track
• Slowdown: Yes – opening and closing
• Locking: Mechanical
• Manual Release: Yes
• Frequency of Use: Up to approximately 25 cycles per hour
• Operating Temperature: Approximately -20°C to +60°C
• Pinion: Module 4
