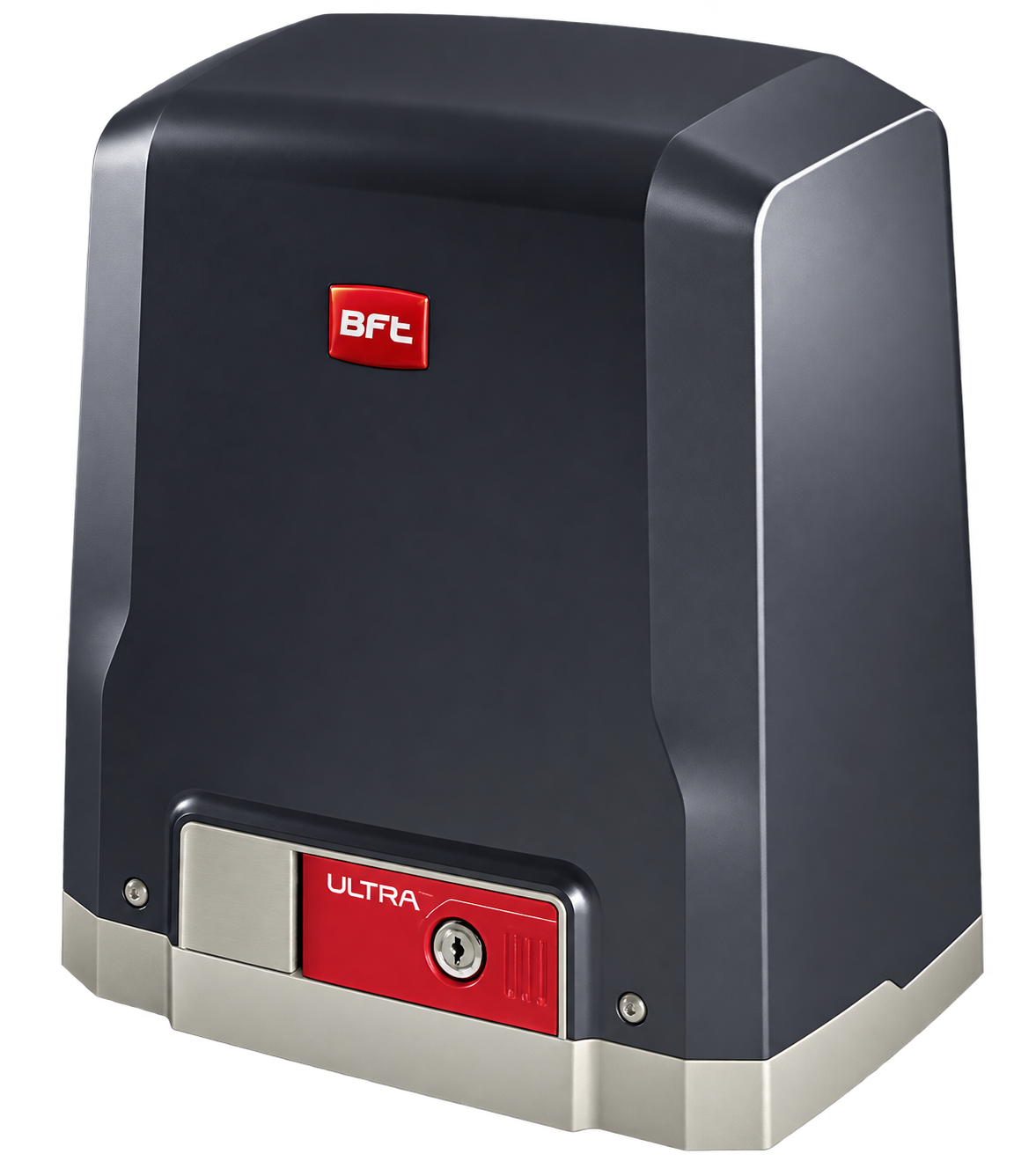

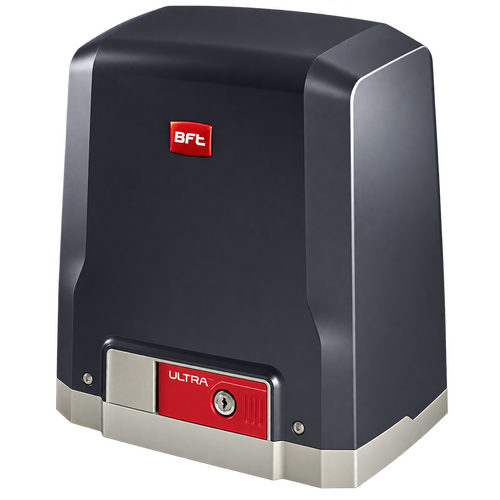

The BFT Deimos Ultra BT A600 is a powerful and advanced sliding gate operator designed for residential and light commercial sliding gates weighing up to 600kg. Powered by a 24V DC motor, it delivers smooth, controlled and reliable operation with a maximum gate speed of approximately 12 metres per minute.

Designed for applications requiring greater capacity and more advanced control than the standard Deimos range, the Deimos Ultra BT A600 features BFT's D-Track force-control technology, magnetic limit switches and the MERAK SL2 control unit. It is an excellent choice for residential driveways, larger sliding gates, unit complexes and light commercial applications where dependable and frequent operation is required.

The Deimos Ultra BT A600 is designed to automate sliding gates with a maximum weight of 600kg. When selecting a gate motor, gate weight should not be considered on its own. The condition of the track and wheels, gate length, slope, wind loading, frequency of use and how freely the gate travels can all affect motor performance. The gate should always move smoothly and freely by hand before automation is installed.

Wind Loads & Weight

The 600kg rating is a maximum gate-weight specification and does not automatically mean every 600kg gate is suitable for this operator. Long gates, gates exposed to high wind loads, gates travelling uphill, poorly maintained gates or gates that require excessive force to move may require a larger operator. Always consider the complete gate system and site conditions when selecting the correct motor.

Understanding wind loads is essential when selecting and installing a gate system, particularly for large, solid or enclosed gates that can act like a sail in strong winds. Wind pressure can place significant additional force on the gate, posts, wheels, track and automation equipment, so factors such as gate size, design, location and exposure should always be considered to help ensure safe, reliable operation and prevent premature wear or damage.

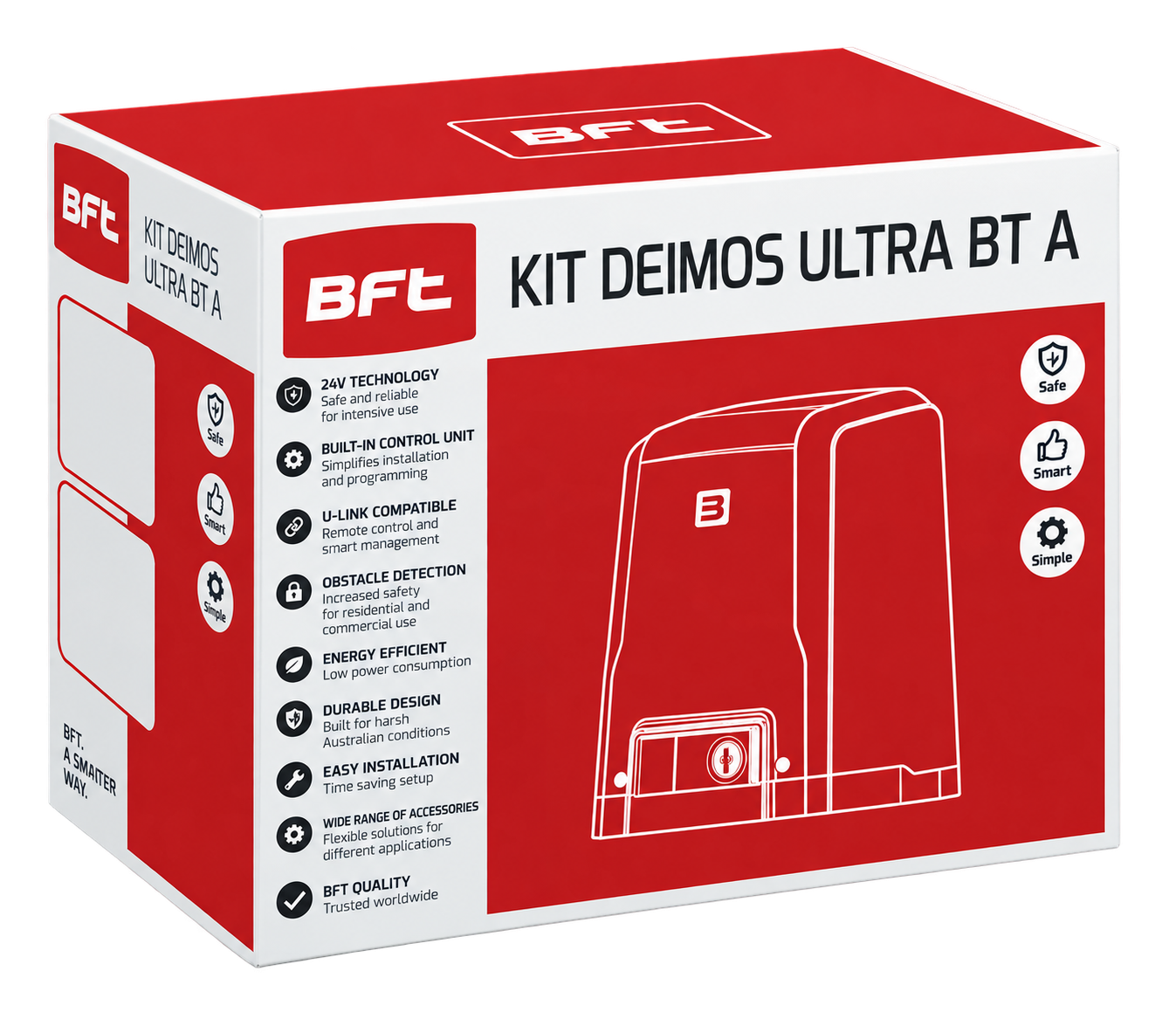

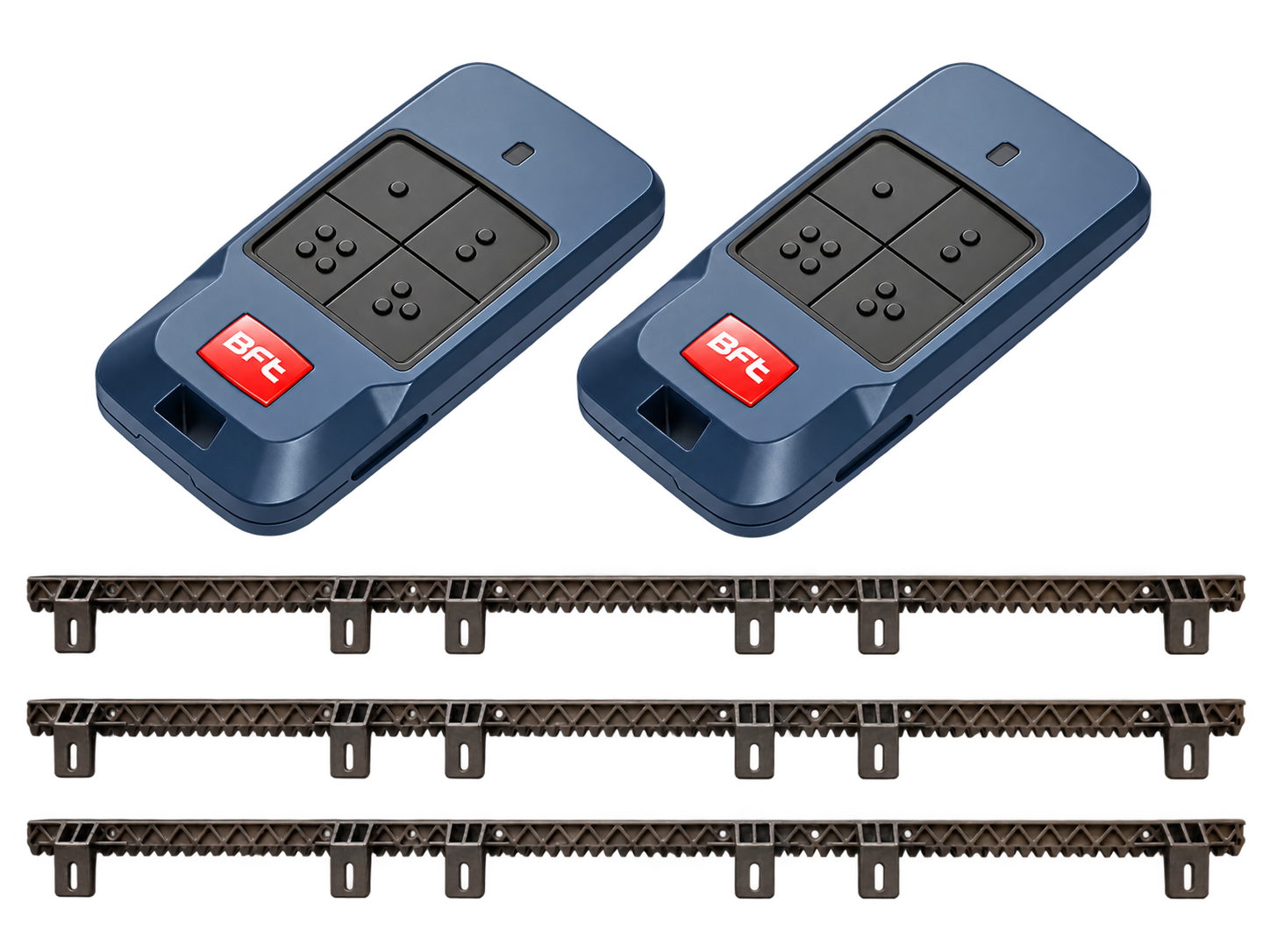

Inclusions in the Kit

• 1x Deimos Ultra BT A600
• 2x MITTO COOL C4 4-Button Remotes
• 3x 1000mm Nylon Racks

Key Features

• Suitable for sliding gates up to 600kg
• Maximum gate speed of approximately 12m/min
• 24V DC motor
• 230V AC control board supply
• MERAK SL2 control unit
• BFT D-Track dynamic force-control technology
• Magnetic limit switches
• Opening and closing slowdown
• Mechanical locking
• Lever-operated manual release with personalised key
• Intensive-use rated operator
• Integrated dual-channel radio receiver
• Pedestrian opening function
• Automatic closing and quick closing functions
• Maintenance warning functionality
• U-Link connectivity
• IP44 protection rating
• Designed for residential and light commercial sliding gate automation
• Compatible with suitable BFT remotes, photocells and accessories

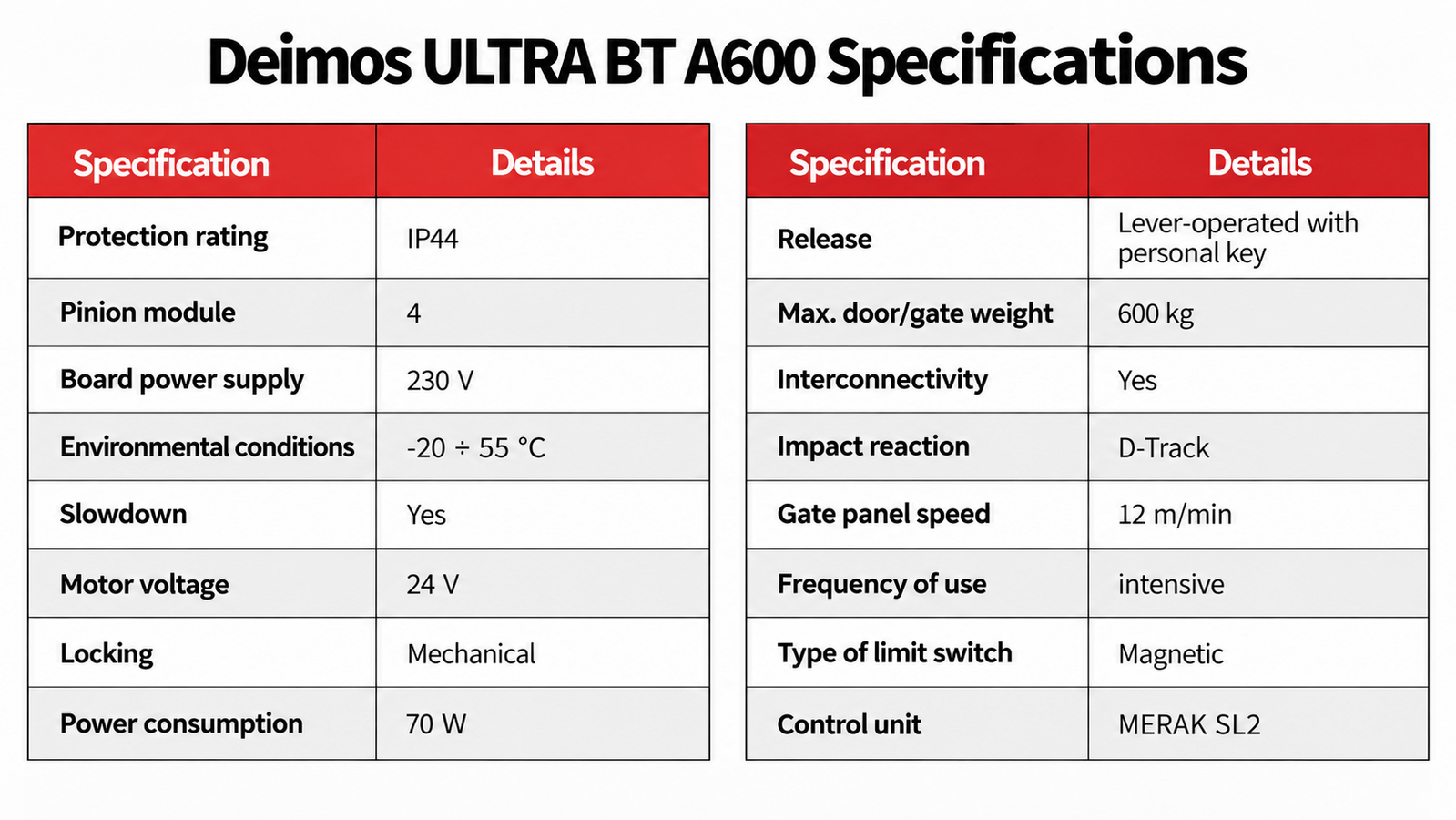

Specifications

• Brand: BFT
• Model: Deimos Ultra BT A600
• Operator Type: Sliding Gate Motor
• Maximum Gate Weight: 600kg
• Motor Voltage: 24V DC
• Control Board Supply: 230V AC
• Control Board: MERAK SL2
• Maximum Gate Speed: 12m/min
• Power Consumption: Approximately 70W
• Maximum Torque: Approximately 30Nm
• Limit Switch Type: Magnetic
• Impact / Force Control: BFT D-Track
• Slowdown: Yes – opening and closing
• Locking: Mechanical
• Manual Release: Lever-operated with personalised key
• Frequency of Use: Intensive
• Protection Rating: IP44
• Operating Temperature: Approximately -20°C to +55°C
• Pinion: Module 4
• Interconnectivity: BFT U-Link
