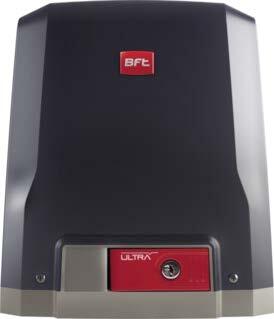

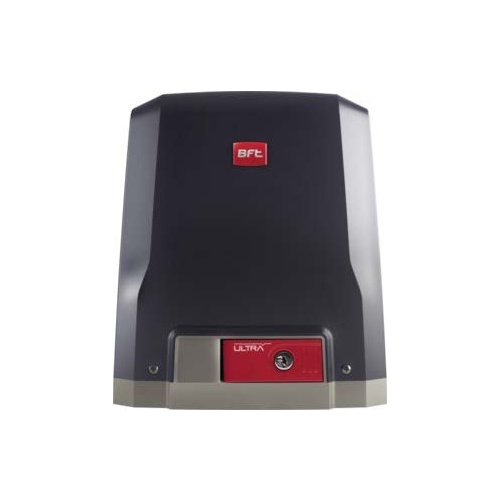

The BFT Deimos Ultra BT B400 is a powerful and advanced sliding gate operator designed for residential and light-use sliding gates weighing up to 400kg. Powered by a 24V DC motor, it delivers smooth, controlled and dependable operation while offering a maximum gate speed of up to 16 metres per minute.

Designed as an upgraded option within the Deimos range, the Deimos Ultra BT B400 combines BFT's D-Track dynamic force-control technology with magnetic limit switches, adjustable slowdown and the advanced MERAK BT A400 control system. It is an excellent choice for residential driveways, townhouses, small complexes and other applications where reliable and responsive automatic gate operation is required.

The Deimos Ultra BT B400 is designed to automate sliding gates with a maximum weight of 400kg. When selecting a gate motor, gate weight should not be considered on its own. The condition of the track and wheels, gate length, slope, wind loading, frequency of use and how freely the gate travels can all affect motor performance. The gate should always move smoothly and freely by hand before automation is installed.

Wind Loads & Weight

The 400kg rating is a maximum gate-weight specification and does not automatically mean every 400kg gate is suitable for this operator. Long gates, gates exposed to high wind loads, gates travelling uphill, poorly maintained gates or gates that require excessive force to move may require a larger operator. Always consider the complete gate system and site conditions when selecting the correct motor.

Understanding wind loads is essential when selecting and installing a gate system, particularly for large, solid or enclosed gates that can act like a sail in strong winds. Wind pressure can place significant additional force on the gate, posts, wheels, track and automation equipment, so factors such as gate size, design, location and exposure should always be considered to help ensure safe, reliable operation and prevent premature wear or damage.

Inclusions in the Kit

• 1x Deimos Ultra BT B400
• 2x MITTO COOL C4 4-Button Remotes
• 3x 1000mm Nylon Racks

Key Features

• Suitable for sliding gates up to 400kg
• Maximum gate speed of approximately 16m/min
• 24V DC motor
• 230V AC mains supply through switch-mode power supply
• MERAK BT A400 control board
• BFT D-Track dynamic force-control technology
• Magnetic limit switches
• Opening and closing slowdown
• Mechanical locking
• Manual release for power outages
• 80W power consumption
• Up to approximately 25 operating cycles per hour
• IP44 protection rating
• Integrated dual-channel radio receiver
• Pedestrian opening function
• Automatic closing and quick closing functions
• Maintenance warning functionality
• Designed for residential and light-use sliding gate automation
• Compatible with suitable BFT remotes, photocells and accessories

Specifications

• Brand: BFT
• Model: Deimos Ultra BT B400
• Operator Type: Sliding Gate Motor
• Maximum Gate Weight: 400kg
• Motor Voltage: 24V DC
• Mains Supply: 230V AC
• Control Board Supply: 24V DC
• Control Board: MERAK BT A400
• Maximum Gate Speed: 16m/min
• Power Consumption: 80W
• Limit Switch Type: Magnetic
• Impact / Force Control: BFT D-Track
• Slowdown: Yes – opening and closing
• Locking: Mechanical
• Manual Release: Yes – lever operated with personalised key
• Frequency of Use: Up to approximately 25 cycles per hour
• Protection Rating: IP44
• Operating Temperature: Approximately -20°C to +60°C
• Pinion: Module 4
