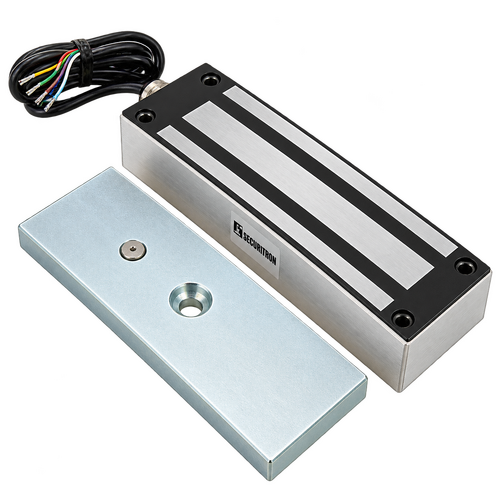

The Guardall MG-500S is a heavy-duty electromagnetic lock designed to provide secure locking for automatic gates and access-control applications. With a holding force of up to approximately 550kg, the MG-500S provides strong magnetic retention while allowing the gate to be released electronically through a compatible gate control or access-control system. Designed for exterior gate applications, the MG-500S is well suited to sliding and swing gates where additional locking strength is required beyond the gate motor’s mechanical holding ability. When powered, the electromagnet securely holds the armature plate in position. When power is removed by the control system, the magnetic field releases, allowing the gate to open.

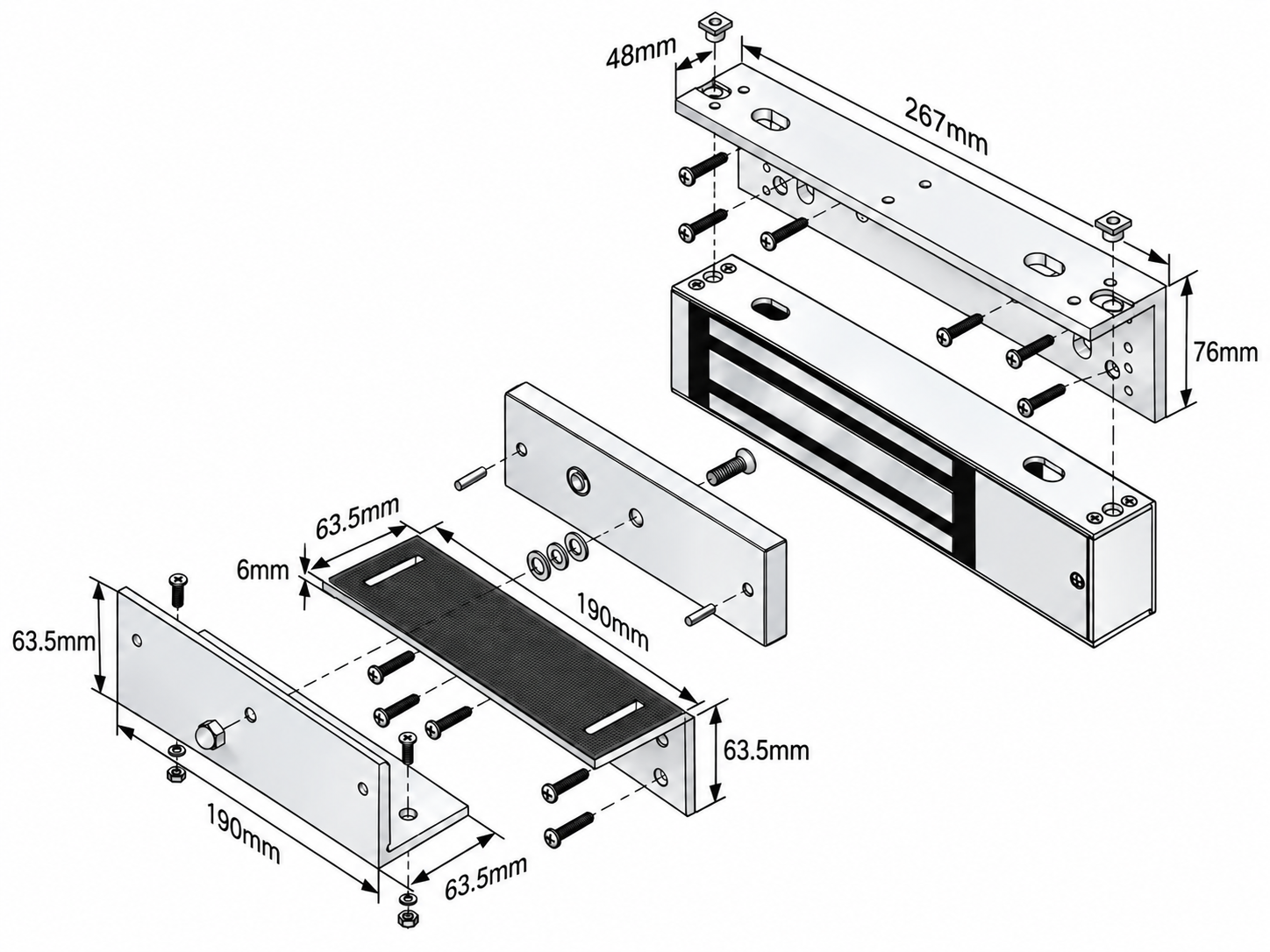

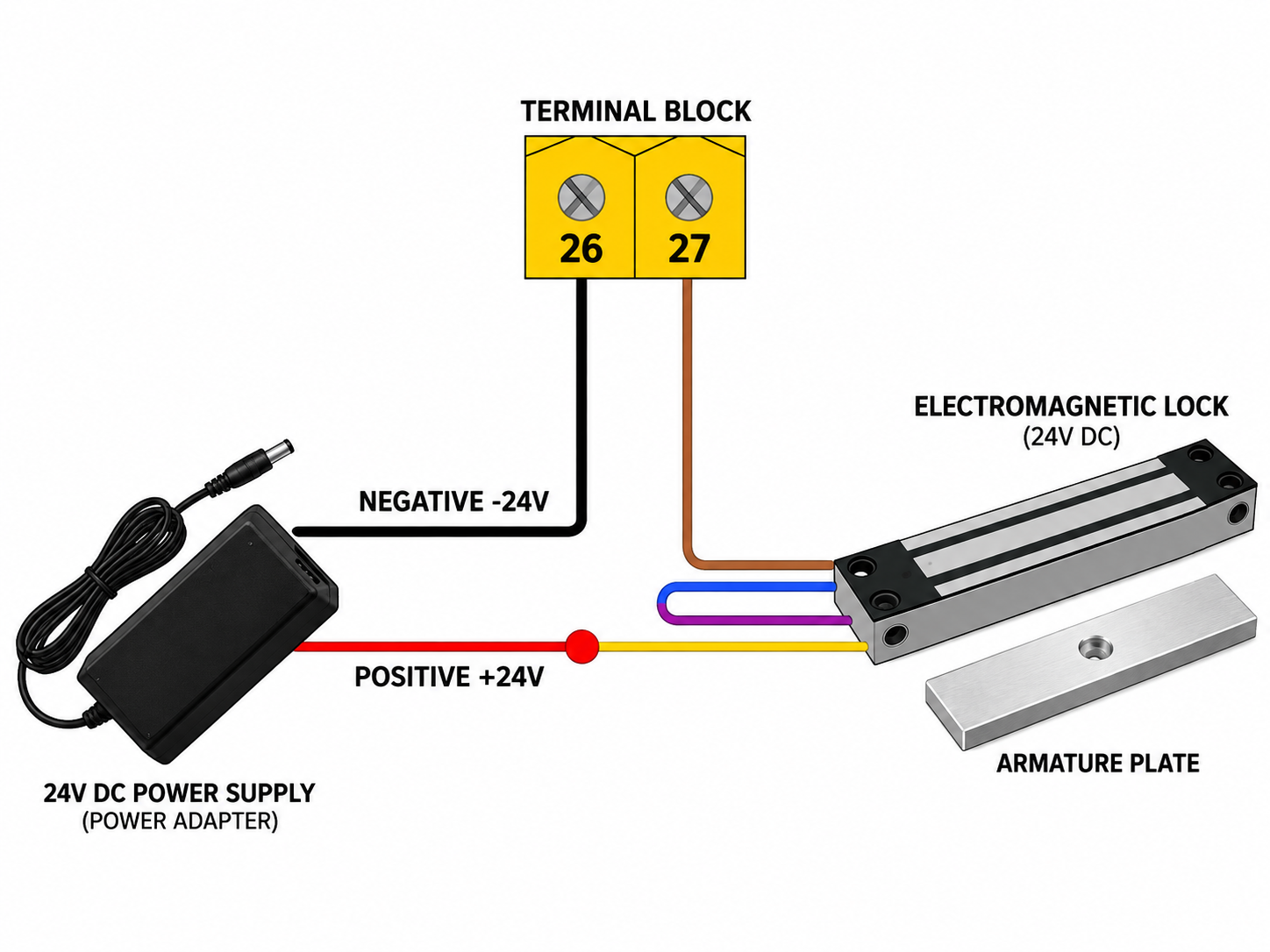

The MG-500S is a fail-safe electromagnetic lock, meaning the lock requires power to remain engaged and releases when power is removed. This makes it suitable for gate automation and access-control systems where electronic release is required. Correct installation, alignment and power supply are important to ensure the magnet and armature plate achieve full contact and maximum holding strength. The lock operates on either 12V DC or 24V DC, allowing it to be incorporated into a wide range of gate automation and access-control systems. Current consumption is approximately 500mA at 12V DC or 250mA at 24V DC.

The MG-500S also incorporates a lock-status sensor, allowing compatible control or monitoring equipment to determine the status of the electromagnetic lock. This can be useful in access-control installations where confirmation of the gate’s locked condition is required. Access Control

Wind LoadS & Weight

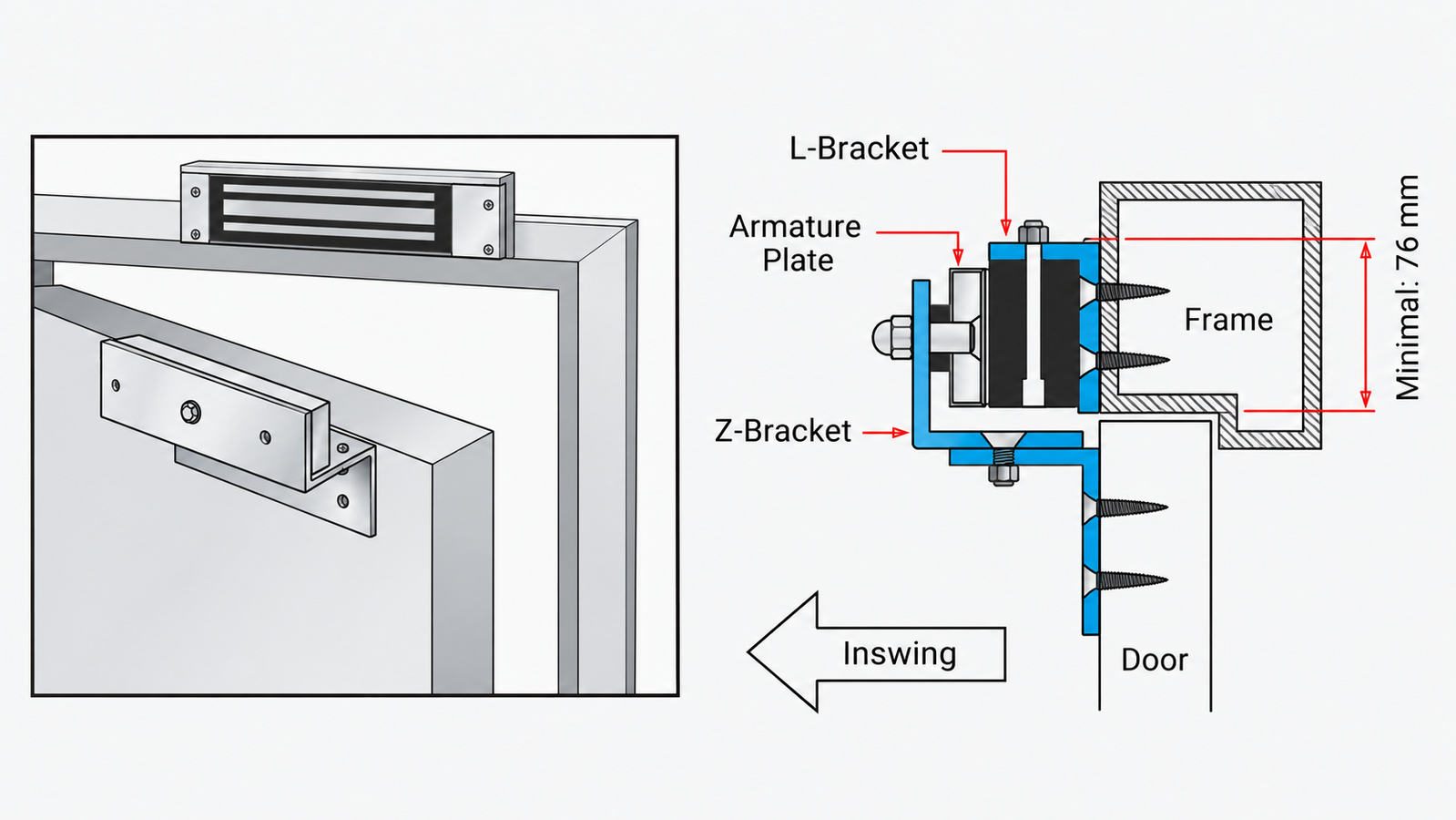

The Guardall MG-500S is suitable for automatic sliding gates, swing gates and other compatible access-control installations. Electromagnetic locks are particularly useful on larger gates or installations where wind, gate movement or external forces could place additional pressure on the gate motor when the gate is closed. When used with an automatic gate system, the maglock should be correctly integrated with the gate control board so the lock releases before the motor begins opening the gate and re-engages once the gate has returned to the closed position.

In high-wind areas, the Guardall MG-500S can provide valuable additional holding force when the gate is in the closed position. Large, tall or solid gates can experience significant wind loading, which may place additional stress on the gate motor, hinges, brackets and structure even when the gate itself is within the motor’s normal weight capacity. Using a maglock helps secure the gate firmly closed and reduces the reliance on the motor alone to resist these external forces.

Key Features

• Heavy-duty electromagnetic gate lock
• Approximately 1200lb / 350kg holding force
• Designed for exterior gate applications
• Suitable for sliding and swing gates
• 12V DC or 24V DC operation
• Approximately 500mA current draw at 12V DC
• Approximately 250mA current draw at 24V DC
• Integrated lock-status sensor
• Fail-safe operation – power to lock
• Electronic release through compatible control systems
• Anodised aluminium housing
• Zinc-finished magnet components
• Suitable for gate automation and access-control systems
• Helps provide additional gate security and closed-position holding strength

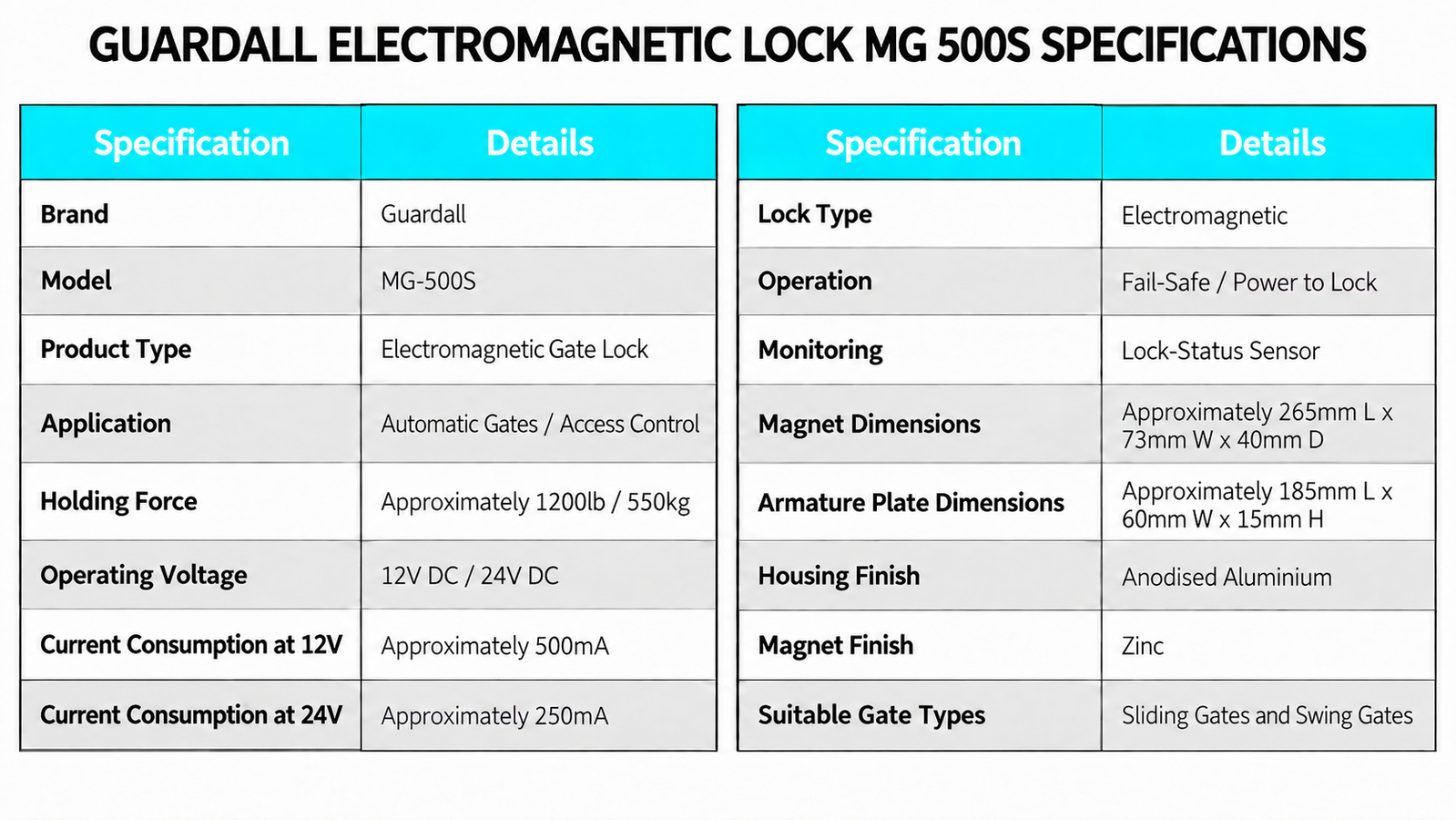

Specifications

• Brand: Guardall
• Model: MG-500S
• Product Type: Electromagnetic Gate Lock
• Application: Automatic Gates / Access Control
• Holding Force: Approximately 1200lb / 350kg
• Operating Voltage: 12V DC / 24V DC
• Current Consumption at 12V: Approximately 500mA
• Current Consumption at 24V: Approximately 250mA
• Lock Type: Electromagnetic
• Operation: Fail-Safe / Power to Lock
• Monitoring: Lock-Status Sensor

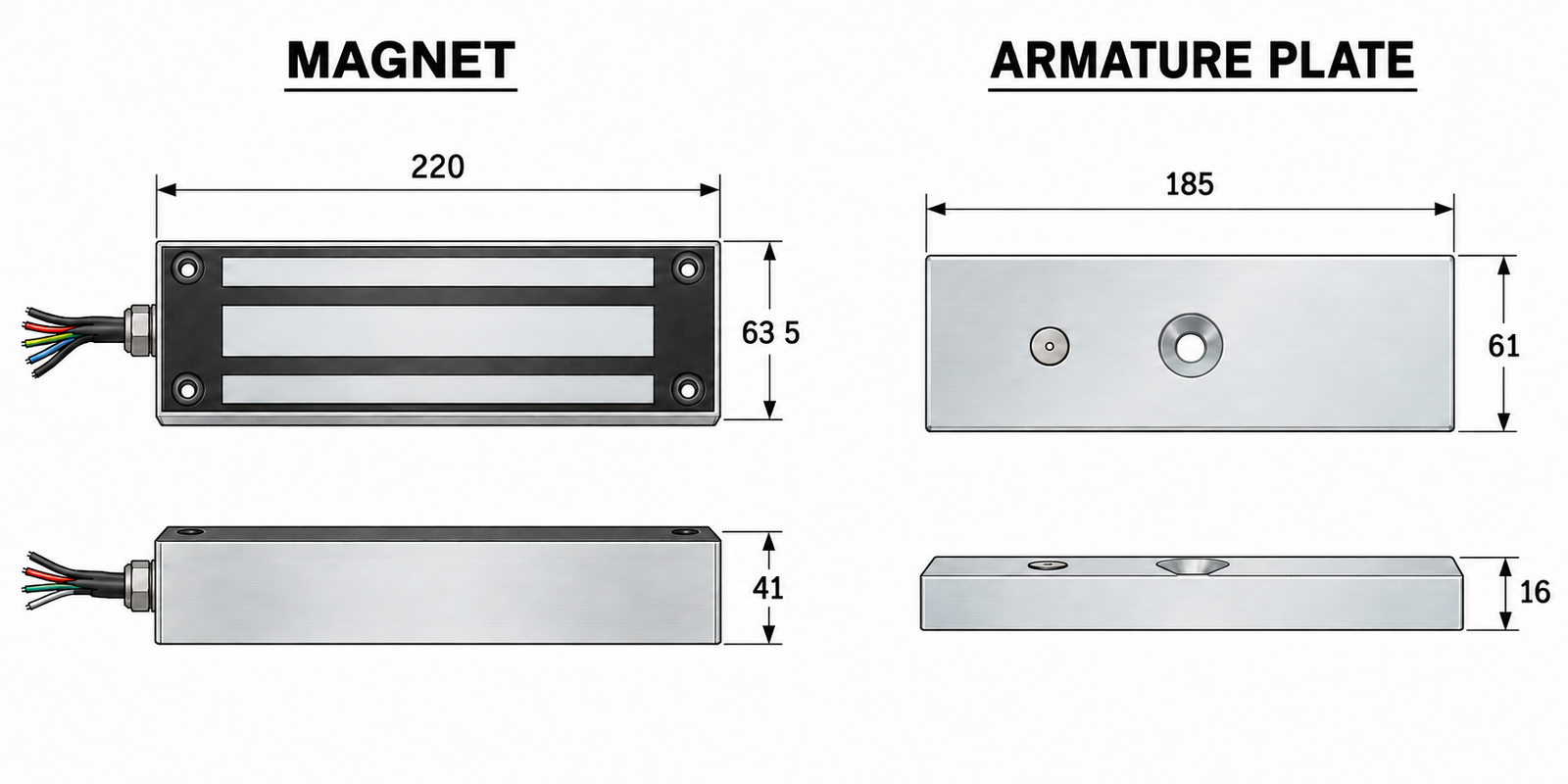

• Magnet Dimensions: Approximately 265mm L x 73mm W x 40mm D
• Armature Plate Dimensions: Approximately 185mm L x 60mm W x 15mm H
• Housing Finish: Anodised Aluminium
• Magnet Finish: Zinc
• Suitable Gate Types: Sliding Gates and Swing Gates
• Compatibility: Compatible gate automation and access-control systems with suitable power supply and lock-control output
