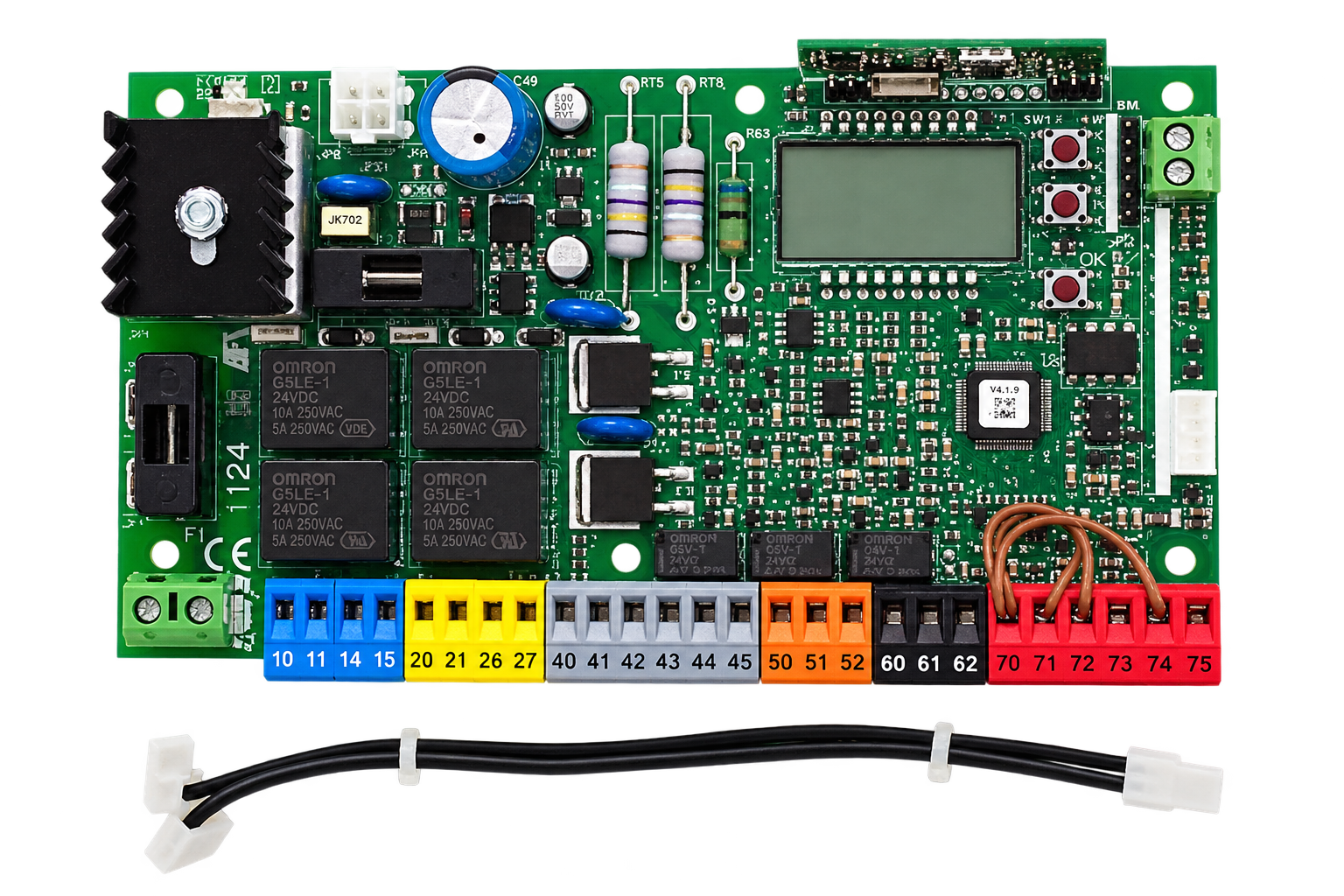

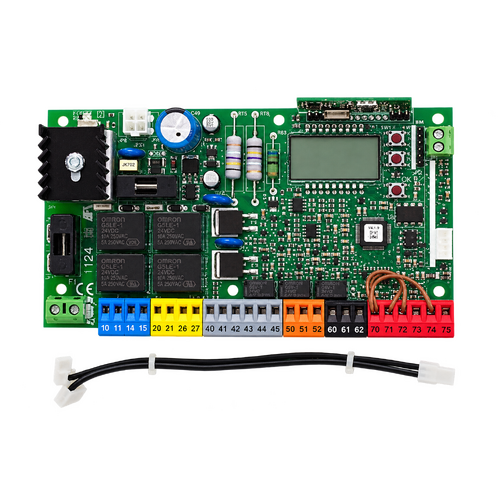

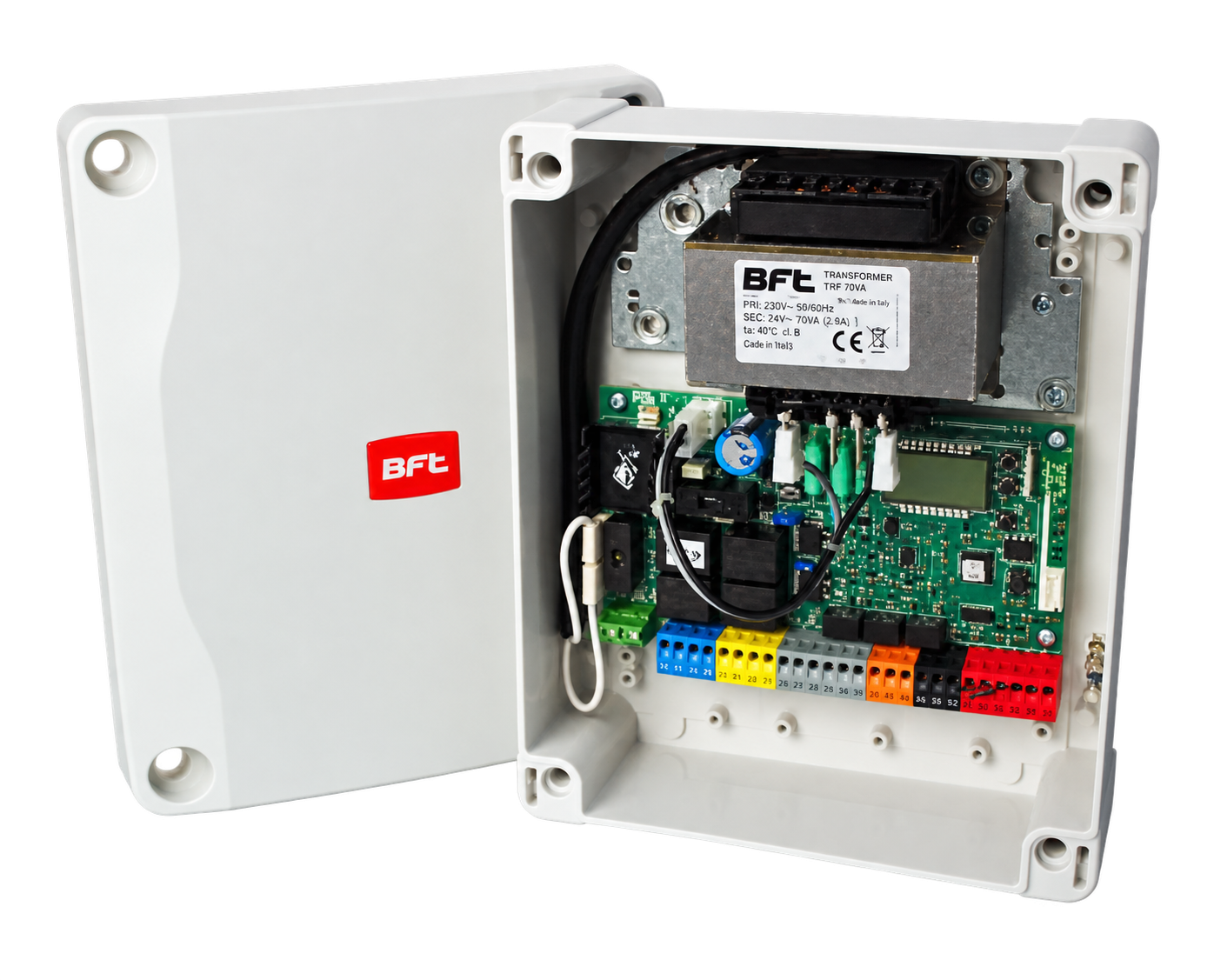

The THALIA is an advanced electronic control panel designed for one or two compatible 24V BFT swing gate operators, including the Phobos BT B range. It provides the central control for gate opening, closing, slowdown, safety devices and operating functions, making it suitable for both single and double swing gate automation systems.

Designed to work with BFT's 24V electromechanical swing gate technology, the THALIA supports D-Track dynamic force-control, allowing the automation system to continuously manage motor torque and respond to resistance during gate movement. This helps provide smooth, controlled operation while supporting the obstacle-detection and safety features built into compatible Phobos motors.

The THALIA is particularly suited to BFT Phobos BT B25, Phobos BT B40 and Phobos BT B35 Veloce operators. It can operate either a single swing gate motor or two motors for a double swing gate installation, making it a versatile solution for residential and commercial swing gate automation.

Compatibility

The THALIA BT A160 is designed for compatible BFT 24V swing gate operators and is the specified control panel for the current Phobos BT B range, including the B25, B40 & B35 Veloce

It is designed to control one or two 24V swing gate operators and should always be programmed for the correct motor type and installation configuration before operation. BFT control boards are not universally interchangeable between all motor ranges, so compatibility should always be confirmed before installation or replacement.

Key Features

• Designed for compatible BFT 24V swing gate motors
• Suitable for Phobos BT B25
• Suitable for Phobos BT B40
• Suitable for Phobos BT B35 Veloce
• Controls one or two swing gate operators
• Suitable for single and double swing gate automation
• 230V AC control panel supply
• 24V motor control
• Supports BFT D-Track dynamic force-control technology
• Controls opening and closing slowdown
• Supports obstacle-detection and force-management functions
• Compatible with magnetic limit switches on suitable Phobos motors
• Programmable motor type and operating parameters
• Compatible with BFT remote-control systems

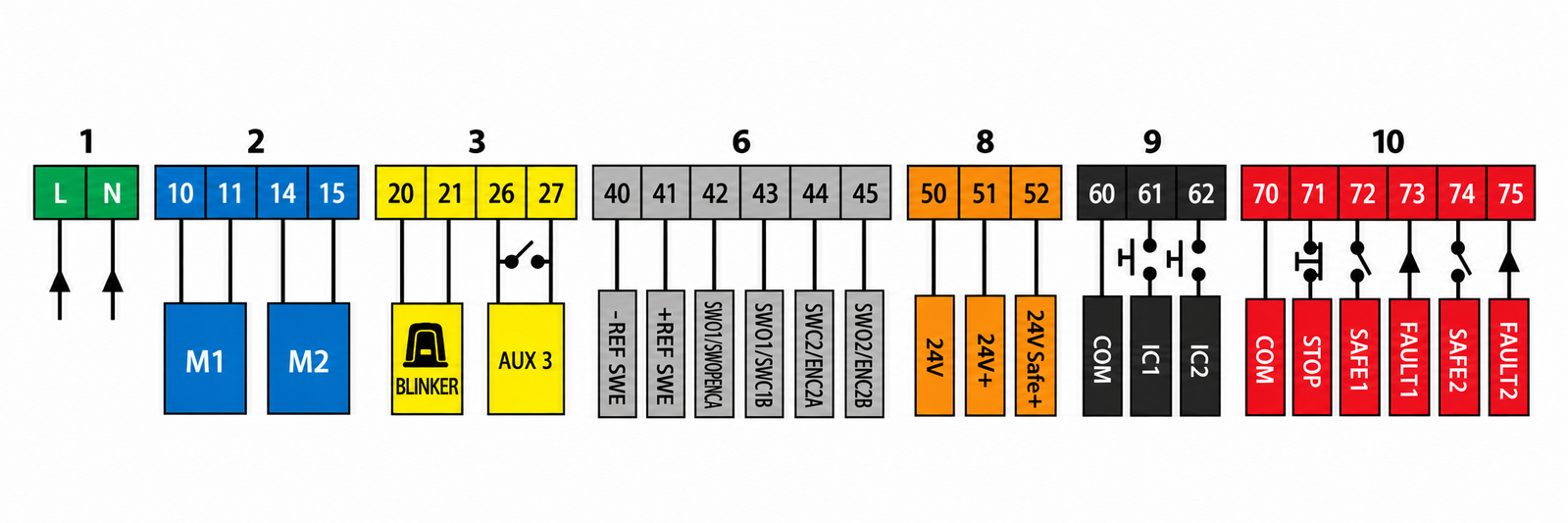

• Connections for compatible photocells and safety devices
• Supports pedestrian opening functions
• Supports automatic closing and other programmable operating logic
• Compatible with suitable BFT accessories and control devices
• BFT U-Link compatible architecture
• Integrated display for setup, programming and diagnostics

Specifications

• Brand: BFT
• Model: THALIA BT A160
• Product Type: Swing Gate Control Panel
• Application: Automatic Swing Gates
• Motor Configuration: Single or Double
• Number of Motors Supported: 1 or 2
• Control Panel Supply: 230V AC
• Motor Supply: 24V DC
• Compatible Motors: BFT Phobos BT B25, Phobos BT B40, Phobos BT B35 Veloce and other compatible BFT 24V swing operators
• Impact / Force Control: BFT D-Track
• Slowdown Control: Yes – opening and closing
• Limit Switch Compatibility: Compatible with magnetic limit switches on suitable operators
• Motor Programming: Selectable motor type
• Safety Device Compatibility: Compatible BFT photocells and safety accessories
• Remote Control Compatibility: Compatible BFT radio and remote-control systems
• Interconnectivity: BFT U-Link compatible
• Installation Type: Electronic swing gate control panel
