Our Giuno ULTRAs are a custom order product, and requires a lead time of 3 days. As these swing motors are specifically ordered upon request, they cannot be returned, exchanged, cancelled or refunded once the order has been confirmed. It is essential that the order should be carefully checked prior to confirmation of the order.

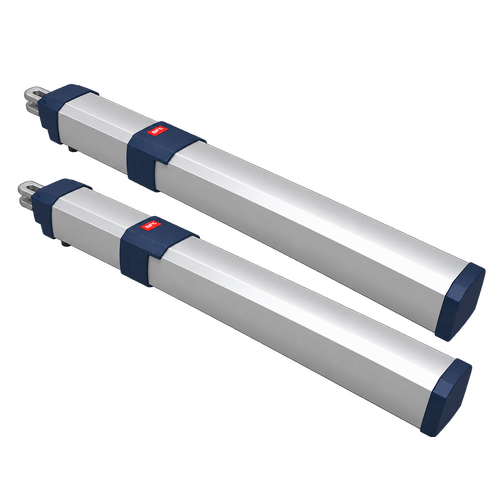

The BFT Giuno ULTRA BT A50 Double is a powerful 24V hydraulic swing gate automation system designed for double swing gates in residential, commercial, multi-residential and very high-use applications. Using two heavy-duty hydraulic linear actuators, the system delivers smooth, controlled and dependable operation for two gate leaves while providing the strength and durability required for larger and heavier swing gates.

Designed for gate leaves up to approximately 5 metres long per side, the Giuno ULTRA BT A50 combines BFT's D-Track dynamic force-control technology with magnetic limit switches, opening and closing slowdown and selectable hydraulic locking. With a useful rod stroke of 392mm and an approximate 20-second movement time through 90 degrees, it is particularly well suited to large driveway gates, commercial entrances, apartment complexes, industrial properties and applications requiring frequent automatic operation.

The Giuno ULTRA BT A50 Double system is designed to automate two separate swing gate leaves. Gate length, gate weight, hinge condition, pillar dimensions, mounting geometry, wind loading and the amount of force required to move each gate leaf all need to be considered when selecting the correct automation system. Both gate leaves should always move smoothly and freely by hand before automation is installed.

Hydraulic Automation

Giuno Ultra swing motors use a hydraulic operating system, where pressurised hydraulic fluid is used to move the actuator and control the gate leaf. Hydraulic technology provides smooth, powerful operation and excellent durability under frequent use, making the Giuno Ultra range particularly suitable for larger, heavier and higher-use swing gate applications.

Wind Loads & Weight

The maximum gate weight and maximum leaf length should never be considered independently when selecting a swing gate motor. Although the Giuno ULTRA BT A50 is rated for gate leaves up to approximately 5 metres long and up to approximately 800kg, these maximum figures do not apply at the same time.

BFT specifies that the A50 can handle approximately 800kg at shorter leaf lengths, while a gate leaf approaching 5 metres is limited to approximately 300kg. This means gate length, gate weight and installation configuration must always be considered together when determining whether the motor is suitable for a particular application.

Understanding wind loads is particularly important with double swing gates because large, solid or enclosed gate leaves can act like sails in strong winds. Wind pressure can create substantial additional forces against both gate leaves, even when their physical weight is within the motor's stated capacity.

Gate design, surface area, location, wind exposure, leaf length and structural strength should therefore all be considered when selecting the appropriate automation system. For large, solid or highly exposed gates, additional engineering considerations or a different automation solution may be required even when the gate falls within the nominal weight and length specifications.

Inclusions in the Kit

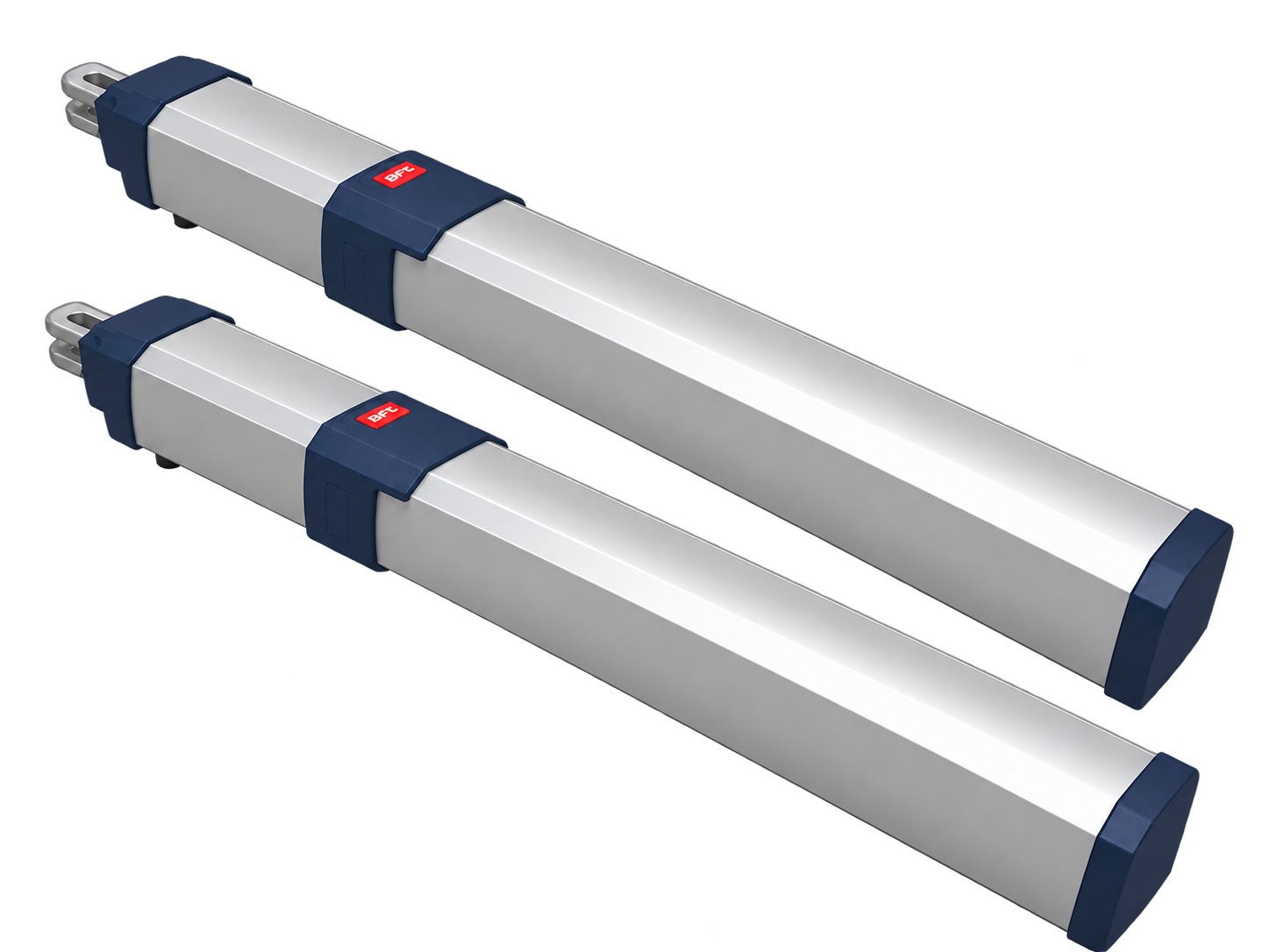

• 2x Giuno ULTRA BT A50 Hydraulic Actuators

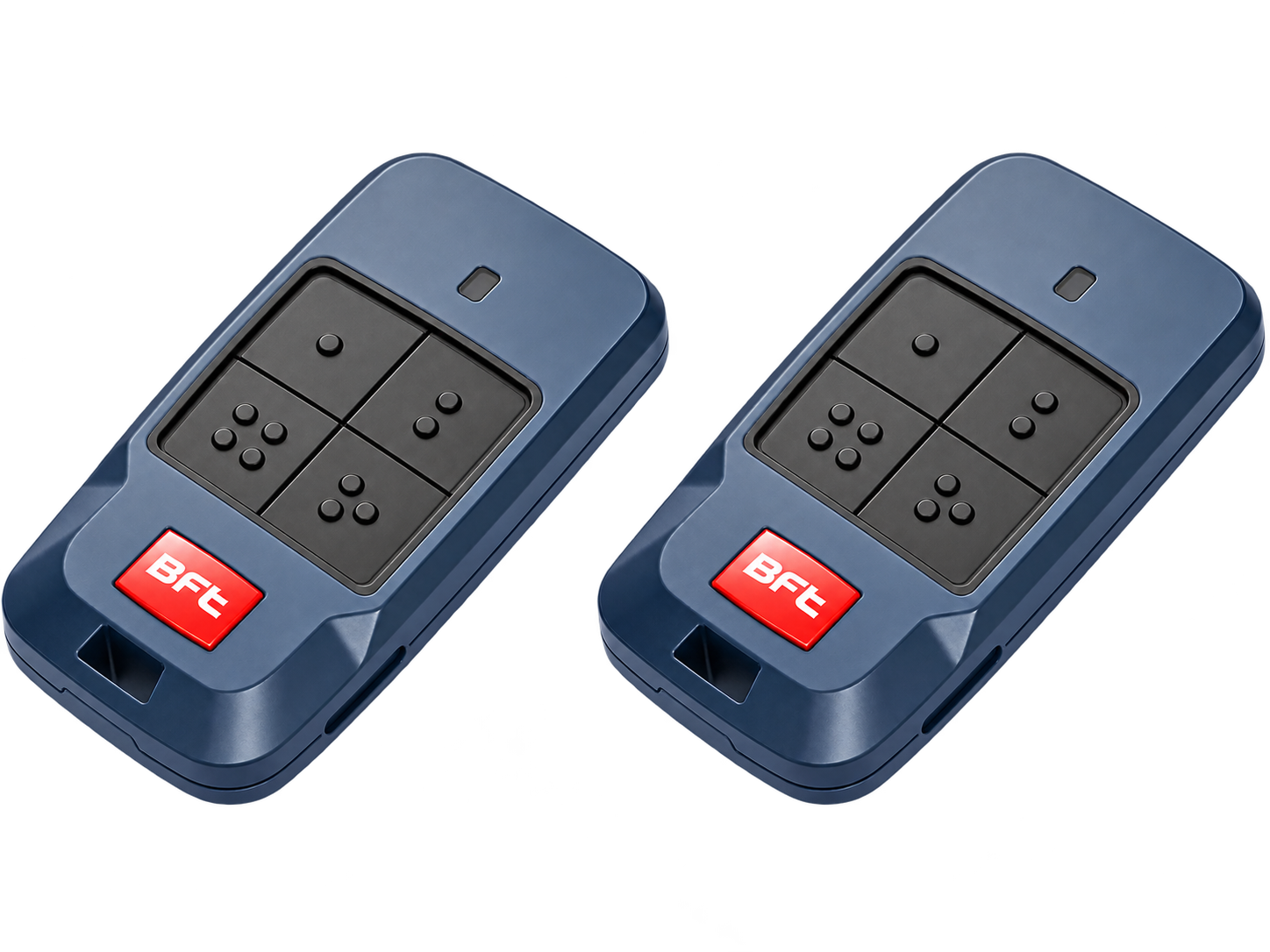

• 2x MITTO COOL C4 4-Button Remotes

Key Features

• Designed for double swing gate automation
• 2x 24V hydraulic linear actuators
• Suitable for gate leaves up to approximately 5m each
• Maximum gate weight up to approximately 800kg per leaf depending on gate length and installation configuration
• Approximately 300kg maximum gate weight at approximately 5m leaf length
• 392mm useful rod stroke per actuator
• Approximately 20-second movement time through 90 degrees
• Maximum opening angle approximately 110 degrees
• Magnetic opening and closing limit switches
• BFT D-Track dynamic force-control technology
• Opening and closing slowdown
• Selectable hydraulic locking
• Very intensive frequency of use
• Hydraulic operation for smooth and durable performance
• Designed for larger and heavier swing gates
• IP55 protection rating
• Designed for residential, commercial, multi-residential and high-use swing gate applications
• Compatible with suitable BFT control systems, remotes, photocells and accessories

Specifications

• Brand: BFT
• Model: Giuno ULTRA BT A50
• Operator Type: Hydraulic Linear Swing Gate Actuator
• Configuration: Double Arm
• Number of Actuators: 2
• Motor Voltage: 24V DC
• Control Board Supply: 230V AC

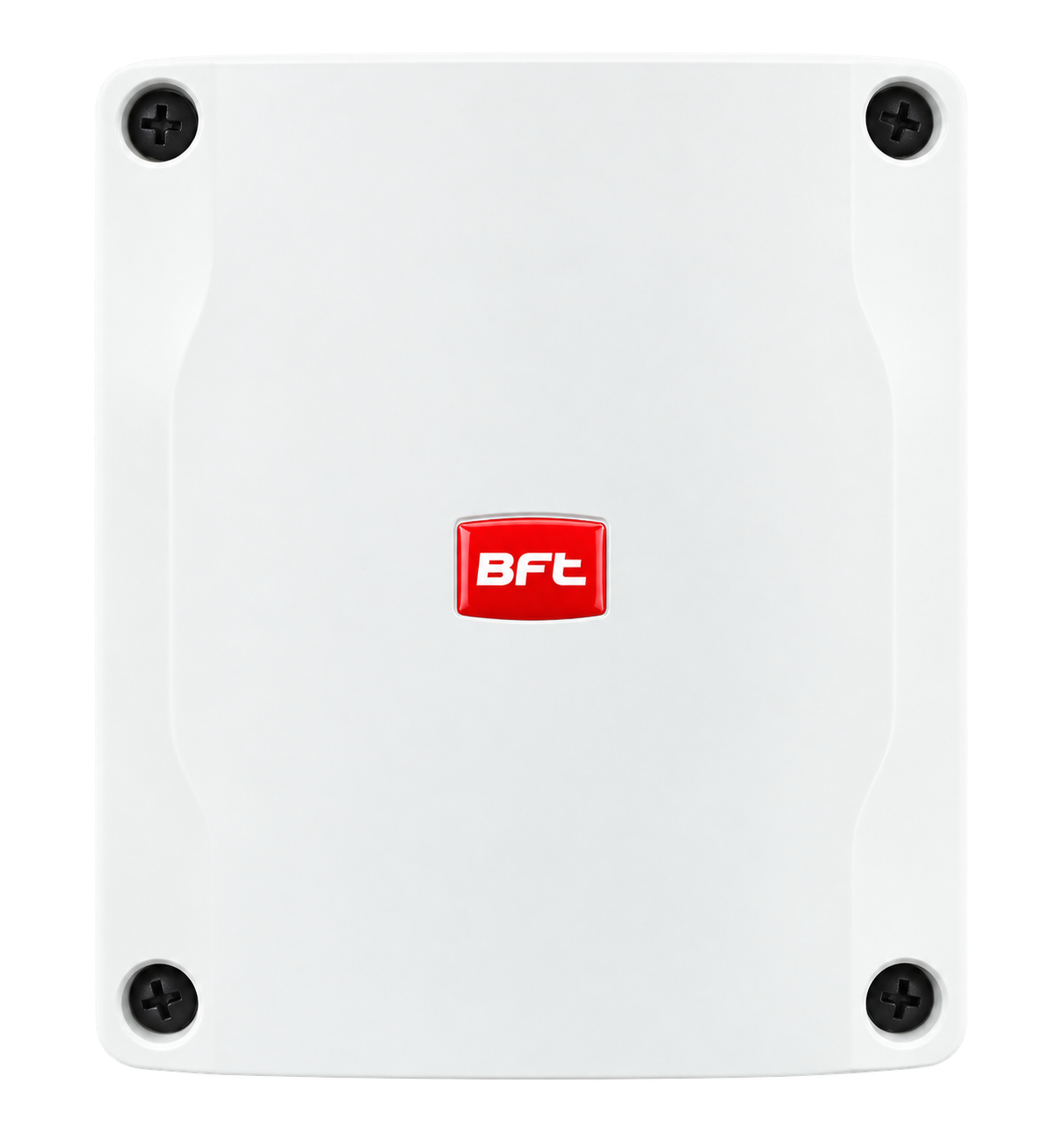

• Control Board: BFT THALIA BT A80 DUO
• Maximum Gate Leaf Length: Up to approximately 5m per leaf
• Maximum Gate Weight: Up to approximately 800kg per leaf depending on leaf length and installation configuration
• Maximum Gate Weight at 5m Leaf Length: Approximately 300kg per leaf
• Useful Rod Stroke: 392mm
• Movement Time: Approximately 20 seconds (90 degrees)
• Maximum Opening Angle: Approximately 110 degrees
• Limit Switch Type: Magnetic
• Impact / Force Control: BFT D-Track
• Slowdown: Yes – opening and closing
• Locking: Selectable hydraulic locking
• Manual Release: Personalised key
• Frequency of Use: Very intensive
• Protection Rating: IP55
• Operating Temperature: Approximately -20°C to +60°C

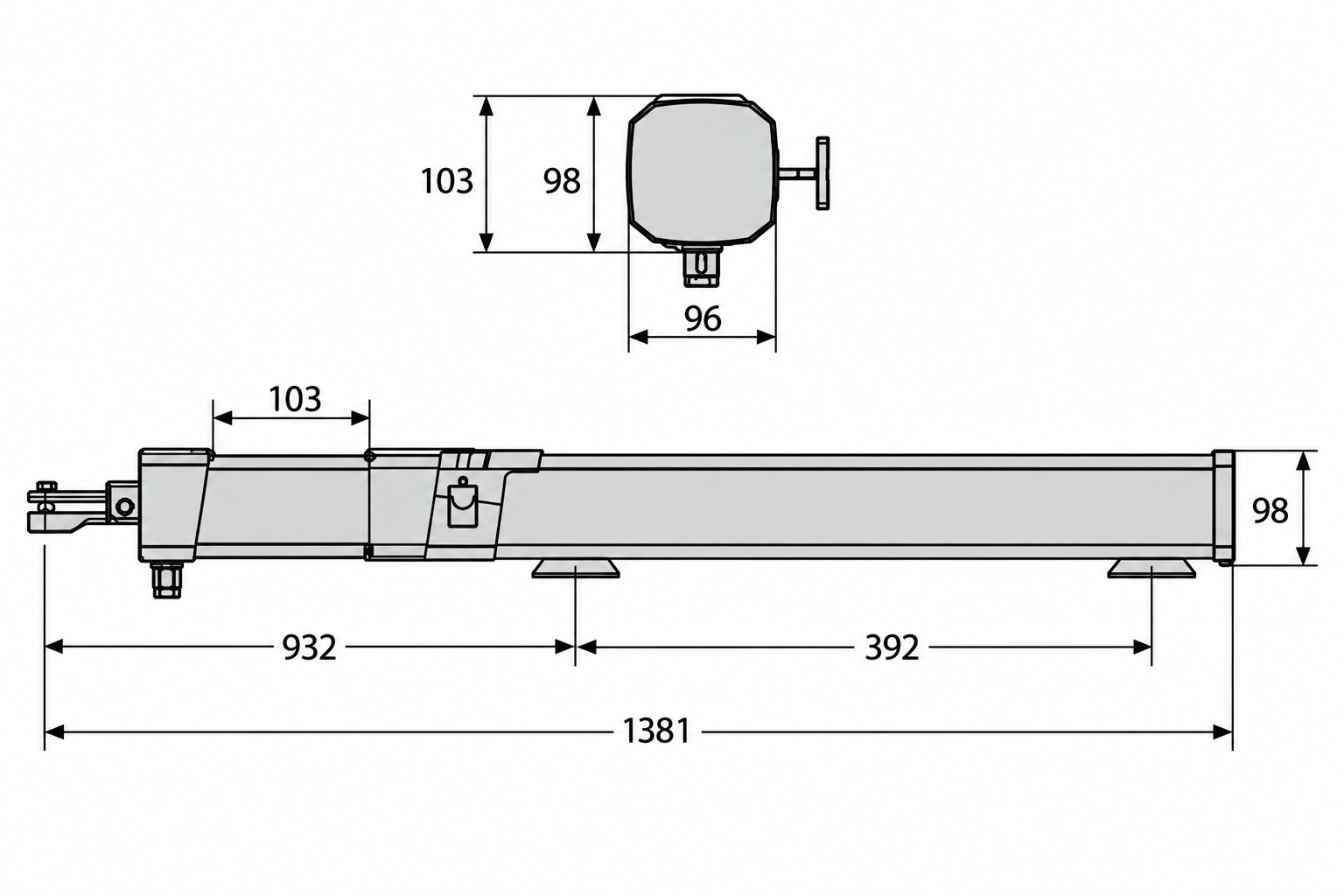

• Overall Operator Length: Approximately 1381mm
• Interconnectivity: BFT U-Link through compatible control system
• Compatible Control Units: BFT THALIA series / compatible BFT 24V control system
