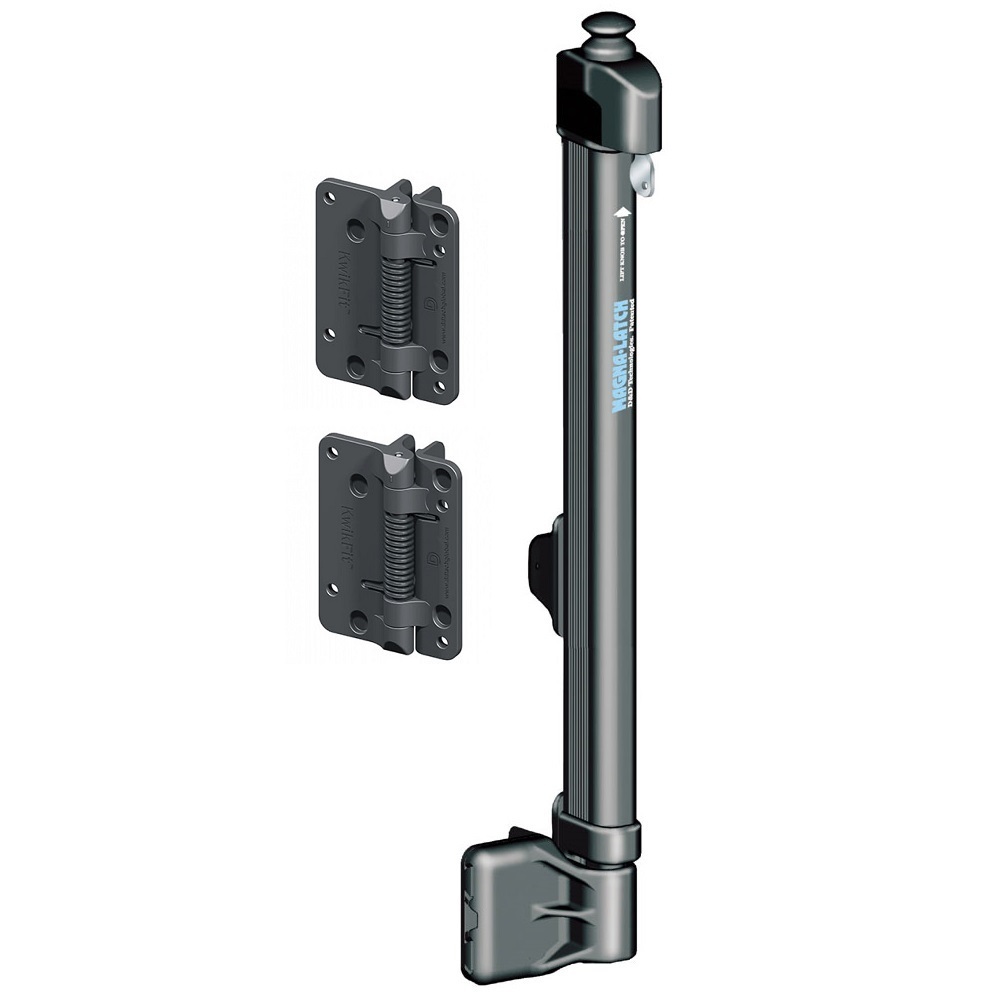

The MagnaLatch® Series 3 Top Pull & KwikFit® Spring Hinges Kit provides a complete self-closing and self-latching solution for residential, pedestrian and child safety gates. Combining D&D Technologies' premium magnetic gate latch with reliable self-closing spring hinges, the kit ensures the gate automatically returns to its closed position and securely latches without requiring manual assistance.

Manufactured from industrial-strength, UV-stabilised engineering polymer with stainless steel components, both products are designed for reliable outdoor performance and excellent corrosion resistance. The MagnaLatch® Series 3 Top Pull features a rekeyable 6-pin security lock, a visual Locked/Unlocked indicator and vertical and horizontal adjustment for accurate alignment. The KwikFit® Spring Hinges feature an integrated stainless steel spring mechanism with fixed closing tension, providing consistent self-closing performance for gates weighing up to 20kg.

For pool fencing applications, the MagnaLatch® Top Pull release knob should be positioned at least 1500mm above finished ground level to help prevent young children from accessing and opening the gate. The complete gate assembly, including the hinges, must be installed in accordance with applicable Australian pool fencing and safety regulations.

Inclusions in the Kit

• 1x MagnaLatch® Series 3 Tall Top Pull Gate Latch
• 1x Pair of KwikFit® Self-Closing Spring Hinges (Sprung)
• Complimentary 20mm Black Powdercoated Steel Tek Screws

Specifications

• Material: Industrial-Strength Engineering Polymer with Stainless Steel Components
• Gate Compatibility: Aluminium, Steel, Timber & Vinyl/PVC
• Post & Frame Shape: Square
• Minimum Post Size: 25mm
• Maximum Self-Closing Gate Weight: 20kg
• Recommended Gate Size: 900mm Wide x 1500mm High
• Ideal Gate Gap: 19mm
• Latching Mechanism: Magnetic Self-Latching
• Lock Type: 6-Pin Rekeyable Key Lock
• Lock Indicator: Visual Locked/Unlocked Indicator
• Latch Adjustment: Vertical & Horizontal
• Hinge Mechanism: Self-Closing Stainless Steel Spring
• Spring Tension: Fixed, Non-Adjustable
• Fixing Method: Screw-On
• Minimum Top Pull Release Height: 1500mm Above Ground Level
