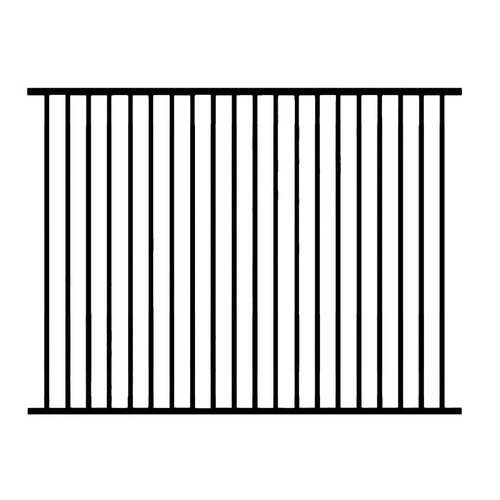

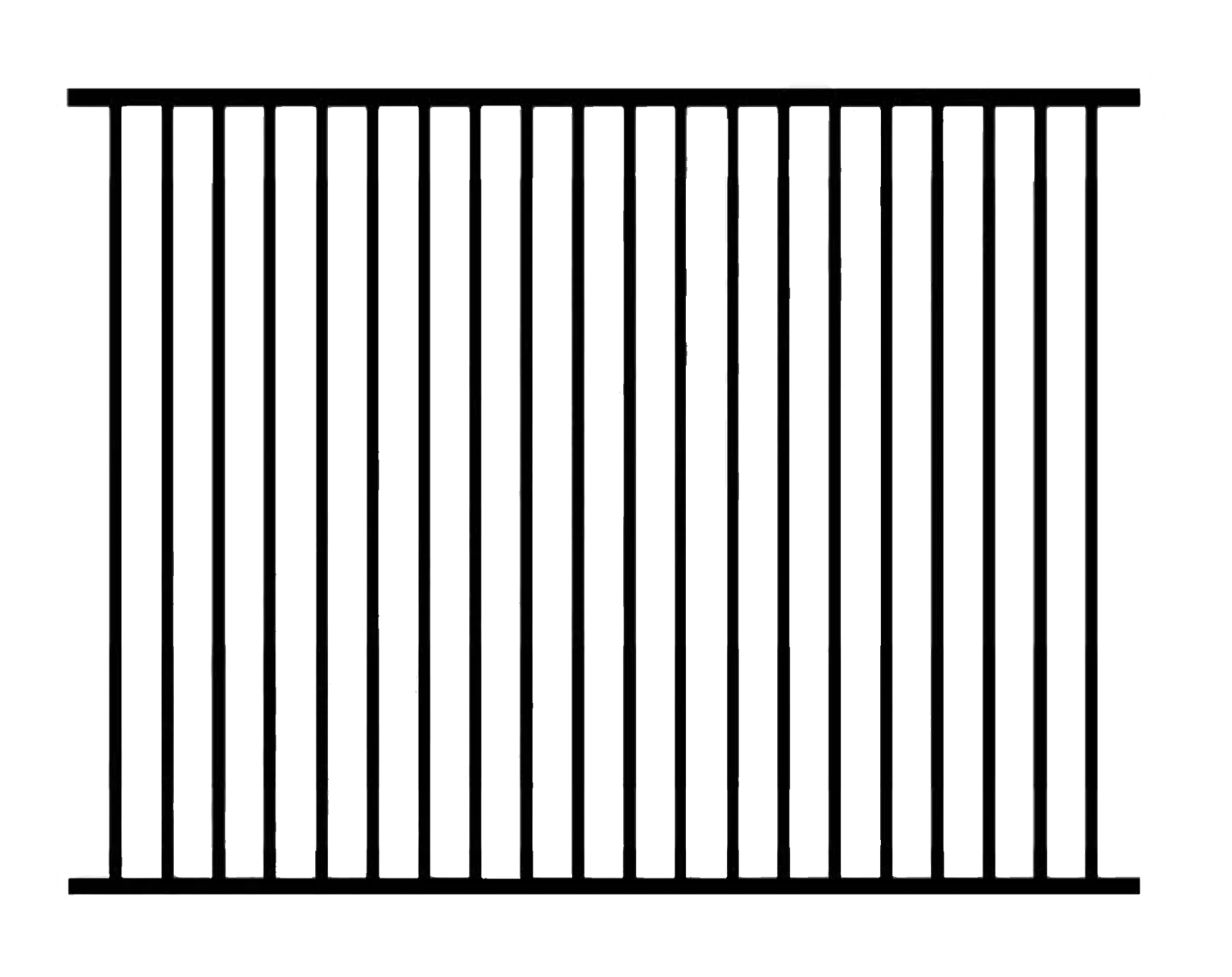

Heavy Security Flat Top Panel 2400 x 1200

The 1800x2400mm Heavy Security Flat Top Fencing Panel provides a strong, durable and low-maintenance fencing solution for residential, commercial, industrial and institutional applications. Featuring a clean, traditional flat top design with closer rod spacing, the panel is ideal for property boundaries, warehouses, factories, schools, childcare centres and general-purpose security fencing where additional strength and restricted openings are desired.

Manufactured from steel, the panel provides excellent strength and durability for demanding outdoor applications. Featuring 25x25x1.2mm square rods with 90mm internal spacing, supported by 40x40x1.6mm square rails, the panel provides a sturdy and consistent design. The flat top construction creates a clean, uniform and security-focused appearance while maintaining airflow and visibility.

Department of Education (DET) Requirements

The closer 115mm rod centres align with the nominal picket spacing specified in NSW Department of Education tubular steel security fencing requirements, falling under EFSG.2026 (The Educational Facilities Standards and Guidelines) and the F&B.0242 (Fences & Barriers 0242 v2.0), making this configuration relevant for schools, educational facilities and other projects requiring closer spacing. However, the flat top design should not be assumed to meet specifications requiring crimped or spear-point pickets.

It is important to note that many Department of Education school security fencing specifications require an overall fence height of approximately 2150mm, with a typical ground clearance requirement of 50–150mm between the bottom of the fence and the finished ground level. As this panel measures 1800mm high, installing it with a 50mm ground clearance achieves an overall height of only 1850mm, falling short of the typical 2150mm requirement. Even with a 150mm ground clearance, the overall installed height would only reach 1950mm. Customers undertaking school, childcare or government projects should therefore confirm the required overall height, ground clearance, panel design, construction and installation specifications before purchasing.

Specifications
