Heavy Security Flat Top Gate 1000 x 1200

Our Heavy Security Flat Top 1500mm are a custom order product, and requires a lead time of 5 days. As these are specifically ordered upon request, they cannot be returned, exchanged, cancelled or refunded once the order has been confirmed. It is essential that the order should be carefully checked prior to confirmation of the order.

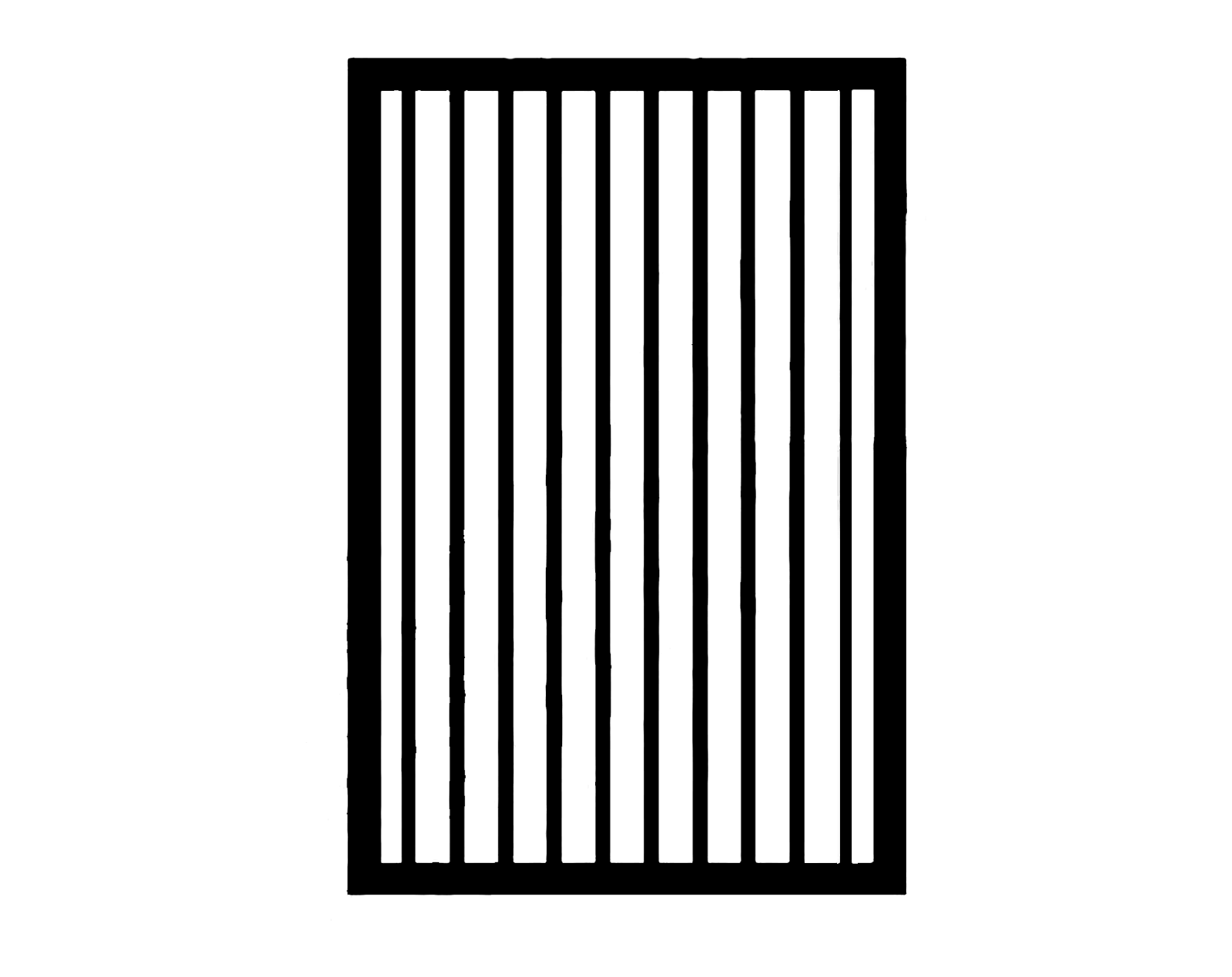

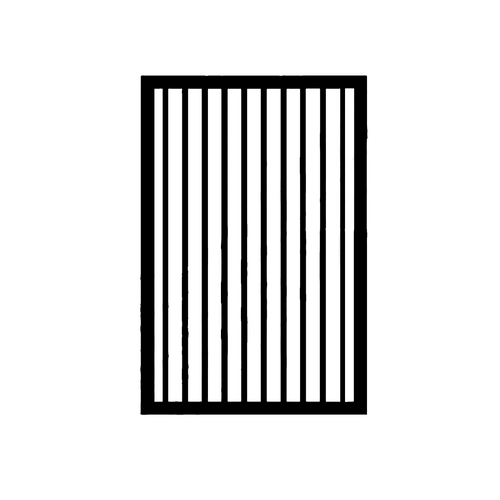

The 1200x1000mm Heavy Security Flat Top Single Gate provides a strong, durable and low-maintenance access solution for residential, commercial and industrial applications. Featuring a clean, traditional flat top design with closer rod spacing, the gate is ideal for pedestrian entrances, property boundaries, gardens, warehouses, factories and general-purpose security access where additional strength and restricted openings are desired.

Manufactured from steel, the gate provides excellent strength and durability for demanding outdoor applications. Featuring 25x25x1.2mm square rods with 90mm internal spacing, supported by a 40x40x1.6mm square frame, the gate provides a sturdy and consistent design that complements our matching Heavy Security Flat Top Fencing Panels. The flat top construction creates a clean, uniform and security-focused appearance while maintaining airflow and visibility.

All our gates come with complimentary gate caps!

Department of Education (DET) Requirements

The closer 115mm rod centres align with the nominal picket spacing specified in NSW Department of Education tubular steel security fencing requirements, falling under EFSG.2026 (The Educational Facilities Standards and Guidelines) and the F&B.0242 (Fences & Barriers 0242 v2.0). While this spacing is relevant for schools, educational facilities and other projects requiring closer gaps, the 1200mm gate is primarily suited to general residential, commercial and industrial applications rather than typical Department of Education security fencing installations.

It is important to note that many Department of Education school security fencing specifications require an overall fence height of approximately 2150mm, with a typical ground clearance requirement of 50–150mm between the bottom of the gate and the finished ground level. As this gate measures 1200mm high, installing it with a 50mm ground clearance achieves an overall height of only 1250mm, falling significantly short of the typical 2150mm requirement. Even with a 150mm ground clearance, the overall installed height would only reach 1350mm. Furthermore, the flat top design should not be assumed to meet specifications requiring crimped or spear-point pickets. Customers undertaking school, childcare or government projects should therefore confirm the required overall height, ground clearance, gate hardware, locking mechanisms, construction and installation specifications before purchasing.

Specifications
